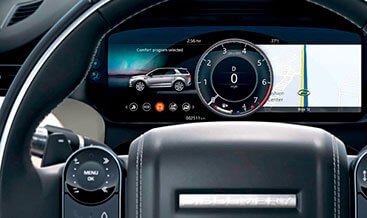

Interactive Driver Display (TFT Cluster) — Genuine JLR 12.3″ Digital Instrument Retrofit

Replace your analogue or partial-LCD instrument panel with a genuine Jaguar Land Rover Interactive Driver Display — a fully configurable 12.3-inch TFT cluster that delivers the digital cockpit experience of current-generation JLR vehicles. This OEM-spec retrofit integrates directly with your vehicle’s CAN bus architecture, preserves factory steering-wheel controls, and arrives pre-coded to your VIN for a seamless installation.

A Fully Digital Cockpit, Built to JLR Specification

The Interactive Driver Display replaces traditional analogue gauges with a high-resolution 12.3-inch TFT-LCD panel operating at 1920 × 720 pixels. The display renders virtual instruments with exceptional clarity, supporting a 60 Hz refresh rate for smooth needle movement and fluid transitions between layouts. An anti-glare coating and an ambient-light sensor manage brightness automatically, so legibility remains consistent in direct sunlight and low-light driving conditions.

You select and control every layout through the existing steering-wheel switches. The cluster communicates over the vehicle’s high-speed CAN bus and, where applicable, MOST or Ethernet networks, receiving speed, RPM, fuel level, temperature, and safety warnings exactly as the original cluster does. A dedicated gateway module translates the data stream and enables the advanced graphical functions without introducing fault codes or network conflicts.

Configurable Display Modes and Information Priority

The system provides multiple factory display modes, so you prioritise the information that matters most for each journey.

Classic Mode presents familiar analogue-style gauges with digital enhancements — a digital needle speedometer with precise numerical readout, a tachometer with shift-point indicators, and a central multi-function area for trip computer data.

Sport Mode shifts the layout toward performance. The tachometer takes the central position, shift lights activate on supported vehicles, and the colour scheme adopts a dynamic red accent with performance-oriented animations.

Navigation Mode projects full-screen map routing directly into the driver’s instrument cluster, including junction views, distance-to-next-manoeuvre indicators, and route overviews. On vehicles with factory navigation, turn-by-turn prompts appear between the virtual instruments, reducing the need to glance at the central touchscreen.

On Terrain Response-equipped models, the cluster synchronises with the off-road system to display pitch, roll, and wheel-articulation graphics in real time[reference:9]. The display also integrates ADAS status, adaptive cruise control feedback, media playback data, and vehicle warning notifications within the driver’s natural line of sight.

Technical Specifications

• Display type: TFT active-matrix colour LCD, full digital
• Screen size: 12.3 inches diagonal (312 mm)
• Resolution: 1920 × 720 pixels
• Colour depth: 16.7 million colours with high contrast ratio and wide viewing angles
• Refresh rate: 60 Hz for smooth animation and needle response
• Integration: High-speed CAN bus; MOST/Ethernet where applicable
• Control interface: Factory steering-wheel switches; JLR diagnostic protocols
• Operating voltage: 12 V DC
• Connector type: OEM-compatible harness; no cutting or splicing required

Compatible Jaguar and Land Rover Models

This retrofit supports vehicles that originally left the factory with an analogue or basic partial-LCD cluster. Current confirmed compatibility includes:

• Range Rover L405 (2013–2022)
• Range Rover Sport L494 (2014–2022)
• Range Rover Velar L560 (2017–present) — upgrades twin-dial analogue or mid-line TFT
• Range Rover L460 (2022–present)
• Discovery L462 (2017–present) — all trim levels
• Discovery Sport L550 (2015–present) — analogue-cluster models
• Jaguar XE X760 (2015–present)
• Jaguar XF X260 (2015–present)
• Jaguar F-Pace X761 (2016–present) — analogue or part-TFT upgrade
• Jaguar E-Pace X540 (2017–present)

Compatibility varies by model year, market variant, and existing infotainment hardware. Share your VIN before ordering and our team confirms the correct firmware profile, harness, and coding parameters for your specific vehicle.

Installation, Coding, and What the Kit Includes

The new cluster mounts into the original dashboard aperture using the existing brackets and trim bezel. The vehicle-specific wiring adapter harness matches your JLR model’s original terminals, so installation requires no cutting or splicing of the factory loom. A professional JLR technician or confident DIY installer completes the physical swap in approximately two hours.

After the hardware fitment, a coding session activates the full menu of display modes, performs mileage correction, and synchronises the cluster with the vehicle’s immobiliser and security architecture. Remote coding support is available via a secure diagnostic link. The kit ships with:

• Genuine JLR Interactive Driver Display TFT cluster, pre-tested and VIN-coded
• Vehicle-specific wiring adapter harness (where required)
• Gateway module, bench-tested for communication with engine ECU, ABS, infotainment, and body control module
• Anti-theft security bolts and original-style trim clips
• Full-colour installation and coding manual

Why Choose This OEM-Spec Retrofit

This solution uses genuine JLR display hardware and factory integration protocols. It preserves dealer diagnostic access, factory warning lights, and service-interval tracking. The cluster synchronises with Terrain Response, ADAS systems, and the infotainment gateway without aftermarket overlays or external screens. Every component carries a 24-month warranty, and lifetime installation support covers coding, troubleshooting, and post-fitment verification.

Order today with your VIN at checkout. We dispatch pre-coded kits the same day for orders placed before 2 PM, with tracking, a digital installation manual, and a remote coding appointment scheduled at your convenience.
