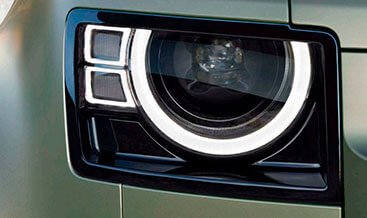

Matrix LED Headlights Retrofit & Installation
Professional OEM-Grade Matrix LED Headlights Retrofit for Land Rover & Range Rover Vehicles
Advanced Matrix LED Lighting Technology
Our professional Matrix LED headlights retrofit delivers exceptional lighting performance for your Land Rover or Range Rover. We implement advanced adaptive lighting technology that integrates seamlessly with your vehicle's electrical architecture and driver assistance systems.
Intelligent Adaptive Beam Technology
The Matrix LED system utilizes sophisticated camera-based detection to create glare-free high beam illumination. This technology maintains maximum forward visibility while automatically dimming specific segments to prevent dazzling other road users. The system achieves precise light distribution across all driving scenarios.
Complete Factory Integration
We ensure complete integration with your vehicle's existing CAN bus network and driver assistance systems. Our installations maintain all factory safety protocols including adaptive cruise control, lane keep assist, and traffic sign recognition functionality.
Glare-Free High Beam Function
The Matrix system maintains full high beam illumination while selectively dimming segments around other vehicles. This technology eliminates manual switching between high and low beam settings.
Dynamic Cornering Light
Active cornering illumination directs light into turns based on steering angle and vehicle speed. The system provides superior visibility during cornering maneuvers and intersection navigation.
Weather-Adaptive Lighting
Intelligent light distribution adjusts automatically for rain, fog, and adverse weather conditions. The system optimizes beam pattern to reduce glare reflection in precipitation.
High-Speed Beam Adjustment
Beam pattern dynamically adjusts based on vehicle speed and road type. The system extends illumination distance at higher speeds while maintaining optimal width for urban environments.
Factory Integration Guarantee
All Matrix LED headlight installations maintain complete compatibility with existing vehicle systems. Our work includes comprehensive electrical integration and software programming.
Technical Specifications
LED Matrix Technology
Each headlight unit contains 84 individually controlled LED segments that operate with millisecond precision. The system achieves luminous intensity of 1,250 lumens per headlight while maintaining precise beam control. Advanced thermal management ensures consistent performance across all operating conditions.
Camera-Based Detection System
The Matrix system integrates with the front-facing camera to detect vehicles up to 800 meters ahead. This detection enables precise segment control that maintains maximum illumination without dazzling other road users. The system processes data at 60 frames per second for real-time beam adjustment.
Electrical System Integration
We integrate the Matrix lighting system directly with the vehicle's high-speed CAN bus network. This integration ensures proper communication with the body control module and driver assistance systems. Our installation includes programming the lighting control modules with vehicle-specific software parameters.
Control Interface Implementation
The Matrix lighting system operates through your vehicle's existing lighting controls and driver assistance interfaces. We implement all adaptive functions including cornering light, weather adaptation, and speed-dependent beam adjustment.
Matrix LED Segment Configuration
84 Individually Controlled Segments:
• 42 segments per headlight for precise beam shaping
• 16 high-beam segments for distance illumination
• 26 low-beam segments for width and foreground coverage
• 12 cornering segments for dynamic bend lighting
• 4 weather adaptation segments for precipitation optimization
Vehicle System Integration
Driver Assistance System Compatibility
The Matrix LED system maintains full compatibility with adaptive cruise control, lane keep assist, and traffic sign recognition. We ensure proper calibration between lighting functions and driver assistance sensors.
Navigation System Integration
When equipped with factory navigation, the Matrix system utilizes route data to anticipate upcoming turns and intersections. This predictive lighting adjustment enhances illumination before entering curves.
Rain Sensor Integration
The Matrix system integrates with the rain/light sensor to automatically adjust beam pattern during precipitation. This integration reduces glare reflection in wet conditions while maintaining optimal visibility.
Speed Signal Processing
Vehicle speed data from the CAN bus enables speed-dependent beam adjustment. The system extends illumination distance at higher speeds while optimizing beam width for urban driving.
Installation Options
| Service Type | Key Features | Installation Time |
|---|---|---|
| Basic Matrix LED Retrofit | Matrix LED headlights, basic adaptive functions, CAN bus integration | 6-8 hours |
| Premium Matrix Installation | Full Matrix functionality, glare-free high beam, cornering light, weather adaptation | 8-10 hours |
| Complete Lighting Upgrade | New Matrix headlight assemblies, camera calibration, full system integration | 10-12 hours |
| Signature LED Package | Matrix LED with signature DRL, dynamic indicators, welcome animation | 12-14 hours |
| Advanced Driver Integration | Matrix LED with navigation integration, predictive lighting, full ADAS calibration | 14-16 hours |
Vehicle Compatibility Assessment
Our technical team performs comprehensive vehicle assessment before any Matrix LED installation. This evaluation examines existing electrical architecture, CAN bus configuration, and driver assistance systems. We verify compatibility with all factory systems including adaptive cruise control and lane keep assist.
For vehicles without factory lighting pre-wiring, we install complete wiring harnesses that replicate OEM specifications. These harnesses integrate seamlessly with the vehicle's electrical system while maintaining proper fuse protection and circuit isolation.
Lighting Performance Metrics
Illumination Distance Enhancement
The Matrix LED system extends high beam illumination to 650 meters while maintaining glare-free operation. This represents a 220% improvement over conventional halogen systems and 140% improvement over standard LED lighting.
Beam Adjustment Speed
Individual LED segments activate and deactivate within 2 milliseconds of detection. This rapid response ensures seamless adaptation to changing traffic conditions without noticeable transition.
Cornering Light Performance
The dynamic cornering function illuminates turns up to 90 degrees at speeds below 40 km/h. This provides superior visibility during low-speed maneuvers and intersection navigation.
Energy Efficiency
Matrix LED technology consumes 40% less power than conventional xenon systems while delivering superior illumination. The intelligent segment control further reduces energy consumption during partial beam operation.
Professional Installation Methodology
Vehicle Assessment & System Compatibility Check
Our certified technicians perform detailed evaluation of your vehicle's existing lighting and electrical systems. This assessment identifies the optimal Matrix LED solution based on your vehicle's architecture and driver assistance configuration.
Headlight Assembly Installation
Technicians install new Matrix LED headlight assemblies with precise alignment to factory specifications. We ensure proper mounting and sealing to maintain weather resistance and structural integrity.
Electrical System Integration
We integrate the Matrix lighting system with the vehicle's CAN bus network and install necessary control modules. All electrical connections utilize OEM-grade connectors with proper strain relief and insulation.
Camera Calibration & System Programming
Our technicians calibrate the front-facing camera system and program the lighting control modules. This process includes implementation of adaptive lighting logic and integration with driver assistance functions.
System Validation & Functional Testing
The complete installation undergoes rigorous testing of all Matrix functions across multiple driving scenarios. We verify proper integration with factory interfaces and validate all adaptive lighting operations.
Key Installation Features
Precision Electrical Integration
Our technicians implement meticulous electrical integration that maintains all factory safety protocols. We ensure proper communication between the Matrix lighting module and vehicle control systems while preserving warranty coverage on affected components.
Software Programming Expertise
We program lighting control modules with vehicle-specific software configurations. This programming enables full adaptive functionality through factory interfaces and ensures proper operation of all Matrix features.
Camera System Calibration
Proper camera calibration ensures accurate vehicle detection and precise beam segment control. We utilize factory calibration equipment to achieve OEM-level accuracy in detection and response.
Premium System Features
- 84 individually controlled LED segments per headlight
- Glare-free high beam with automatic vehicle detection
- Dynamic cornering light with steering angle integration
- Weather-adaptive beam pattern for rain and fog conditions
- Speed-dependent beam adjustment for optimal illumination
- Integration with navigation system for predictive lighting
- Compatible with adaptive cruise control and lane keep assist
- Signature DRL with distinctive lighting signature
- Dynamic direction indicators with sweeping animation
- Welcome and goodbye lighting animation sequences
- Automatic headlight leveling and cleaning system integration
- Professional programming with JLR diagnostic equipment
| Make Model | New Range Rover Evoque 2021+ |
|---|
