Park Assist GEN2 Retrofit for Land Rover & Jaguar
Bring second-generation Park Assist to your JLR vehicle—verified against your VIN, applied through JLR-approved diagnostic pathways, and validated with a full manoeuvre test.
Second-Generation Parking Automation
Park Assist GEN2 represents a significant step beyond the first-generation system. Instead of relying on ultrasonic sensors alone, it fuses ultrasonic distance data with imagery from the surround camera network. That combination lets the vehicle identify a suitable space earlier, confirm its dimensions with greater confidence, and plan the manoeuvre around obstacles that sensors alone would miss. You drive past a row of parked cars at normal road speed, and the system reports a viable space on the touchscreen before you reach it.
Once you accept the space, Park Assist GEN2 takes on far more of the workload. It steers, selects the appropriate gear, controls throttle and braking, and completes the manoeuvre in a smooth, continuous sequence. The Electronic Power Assisted Steering rack applies calculated inputs while the Parking Aid Module continuously re-evaluates the surroundings. You monitor the process and remain ready to intervene, but the vehicle handles the geometry. Parallel and perpendicular entries both complete with a single confirmation.
Key Features
- Ultrasonic and camera sensor fusion delivers more reliable space detection than sensors alone.
- Higher-speed space scanning identifies viable spaces as you drive past them normally.
- Automated gear selection shifts between drive and reverse without driver input during the manoeuvre.
- Automated throttle and braking controls speed throughout entry and exit sequences.
- Parallel entry and exit handles kerbside spaces in both directions.
- Perpendicular entry and exit manages bay parking and reverse-out manoeuvres.

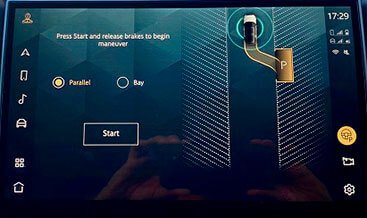

- Camera-guided trajectory display overlays the planned path on the surround view image.
- Obstacle re-evaluation recalculates the manoeuvre when the surroundings change mid-sequence.
- Multi-manoeuvre capability completes the full sequence rather than stopping after each movement.
- Rear Traffic Monitor integration warns of crossing vehicles during reverse phases.
- Driver override at any time lets you take control instantly through the pedals or wheel.
- Towing-aware inhibition suppresses the function whenever a trailer stays connected.
Technical Specifications
We supply every component to meet JLR factory standards for detection accuracy, durability, and electromagnetic compatibility. Our team configures the Parking Aid Module with your vehicle’s exact build data, so the system behaves exactly like a factory-installed unit.
| Parameter | Specification |
|---|---|
| Sensor Set | Twelve ultrasonic sensors: six front, six rear (four and four on selected variants) |
| Camera Inputs | Rear camera as minimum; surround camera network for full fusion capability |
| Control Module | Parking Aid Module (PAM) with CAN-HS and Ethernet connectivity |
| Space Detection Speed | Active up to approximately 30 km/h, platform dependent |
| Manoeuvre Speed | Controlled below 5 km/h with automatic throttle and brake modulation |
| Gear Control | Automated drive and reverse selection during the sequence |
| Steering Interface | Electric Power Assisted Steering (EPAS) with automatic input authority |
| Display Integration | Touch Pro, Touch Pro Duo, and Pivi Pro touchscreen with parking menu |
| Ultrasonic Range | Approximately 0.3 m to 4.5 m per sensor, variant dependent |
| Operating Temperature | −40 °C to +85 °C |
| Environmental Protection | Sensors IP69K, module IP53 |
What the Retrofit Package Contains
You receive a complete installation package with detailed colour instructions that cover torque values, connector views, and the necessary CCF amendments. Every clip, seal, and fixing arrives in the box.
- Parking Aid Module with vehicle-specific mounting bracket
- Ultrasonic sensor set with mounting grommets, retainers, and paint-matched covers
- Front and rear bumper wiring harnesses with genuine OEM connectors
- Surround camera harness extension where your vehicle requires one
- Dashboard or touchscreen control integration as fitted
- All fixings, anti-corrosion treatments, and loom routing clips
- Remote CCF editing support to enable the Park Assist GEN2 menu
- Calibration and validation report after installation
Vehicle Compatibility
This Park Assist GEN2 retrofit suits Land Rover and Jaguar models with EPAS, a compatible Parking Aid Module, and the required camera hardware. We verify your VIN before dispatch to guarantee exact compatibility and correct configuration.
- Range Rover L460
- Range Rover Sport L461
- Range Rover Velar L560
- Range Rover Evoque L551
- New Defender L663
- Jaguar F-Pace X761, E-Pace X540, and I-Pace
Contact our technical team for specific model-year confirmation and a camera prerequisite check. Vehicles without a rear camera need additional components, and we quote those separately.
Installation & System Integrity
Our authorised installation partners follow a meticulous, vehicle-specific procedure. They remove the bumpers, fit the sensors into the factory-marked positions, route genuine-style harnesses along the existing loom paths, and install the Parking Aid Module. Our technicians then calibrate the sensor geometry, align the camera reference, and activate the Park Assist GEN2 menu through proprietary JLR-compatible software. We finish with a full manoeuvre test in a marked bay to confirm space detection, automated gear selection, and complete sequence behaviour. This approach ensures the system performs with the same reliability and refinement as a factory-fitted option.
Every component meets or exceeds original equipment standards for detection accuracy and long-term durability. The system undergoes rigorous testing for vibration, water ingress, paint adhesion, and thermal cycling, which guarantees consistent performance in all conditions.
Transform Every Parking Manoeuvre
Upgrade your vehicle with a retrofit that embodies the technical excellence expected of the Jaguar and Land Rover brands. This Park Assist GEN2 system delivers measurable protection and genuine automation while preserving the integrity and aesthetics of your vehicle.
Contact our retrofit specialists today to confirm compatibility, receive a detailed quote, and schedule your installation.
