Powered Tailgate Retrofit for Land Rover & Jaguar

A tailgate that opens with a wave of your foot transforms the way you load your vehicle every single day. The genuine powered tailgate retrofit from LR‑Retrofit replaces your manual gas struts with an OEM electric spindle drive, adds a soft‑close power latch, and integrates hands‑free gesture control. The entire system operates through your factory key fob, the cabin‑mounted release switch, and the exterior tailgate button. Our remote coding team activates every module using JLR‑approved diagnostic pathways, so the upgrade works exactly as it does on vehicles that left the production line with the option ticked.

Why Fit a Factory Powered Tailgate

• Hands‑free opening becomes an everyday luxury. Approach your vehicle with arms full of shopping or a muddy dog lead, and a simple kicking motion under the rear bumper opens the tailgate smoothly and silently. The gesture sensor responds instantly, even in rain or poor light.
• Soft‑close latching protects the mechanism and your ears. The power latch draws the tailgate gently into the striker, eliminating the harsh slam of a manual boot. A quiet whirr replaces the metallic clunk, and the motorised cinching ensures a perfect seal every time.
• Height‑programmable opening stops the tailgate hitting your garage roof. The Body Control Module stores a user‑defined opening height. You set it once, and the tailgate remembers that position until you deliberately reprogramme it.
• Full anti‑pinch safety protects children and cargo. The Hall‑effect sensors inside the spindle motors detect resistance instantly. If the tailgate encounters an obstruction while closing, it immediately reverses direction—a critical safety feature that aftermarket kits often lack.
• Seamless integration with the vehicle’s passive entry system. The tailgate locks and unlocks in harmony with the keyless entry. When you walk away, the tailgate latches securely and the alarm perimeter re‑arms without any extra button presses.

How the Genuine Powered Tailgate System Works

Jaguar Land Rover’s powered tailgate architecture uses two synchronised spindle drives mounted in place of the manual gas struts. Each spindle contains a brushless DC motor, a three‑stage planetary gearbox, and a Hall‑effect position sensor. The sensors report the exact angle of the tailgate to a dedicated Tailgate Control Module (TCM) at sub‑millisecond intervals. The TCM communicates with the Central Junction Box and Body Control Module over the LIN‑bus, coordinating the power latch, the outer‑handle switch, and the hands‑free antenna. When you trigger a command—whether from the key fob, the cabin switch, or the gesture sensor—the TCM activates both spindles simultaneously and modulates speed throughout the travel curve to deliver a refined, controlled motion.

Our retrofit kit supplies the identical hardware your vehicle would receive at the Halewood or Solihull assembly plant. We provide every bracket, wiring pigtail, and CAN‑bus termination resistor. The installation mounts to existing captive nuts on the D‑pillar and rear floor, preserving the factory crumple zones and corrosion protection. Once you complete the mechanical installation, our remote coding session writes the “powered tailgate present” flag to the Car Configuration File and calibrates the spindle end‑stops against your vehicle’s specific tailgate weight.

What the Powered Tailgate Retrofit Kit Includes

• Two genuine JLR electric spindle drives with integrated dampers and position sensors.
• OEM power soft‑close latch assembly with micro‑switch harness.
• Tailgate Control Module pre‑loaded with vehicle‑appropriate firmware.
• Hands‑free kick sensor with mounting bracket and protective undertray.
• Complete vehicle‑specific wiring harness, including fused power feed from the rear Battery Junction Box.

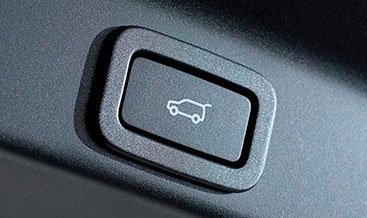

• Cabin tailgate switch (if your existing switch panel lacks the button).
• JLR DoIP Vehicle Communication Interface for the remote coding appointment.
• Full installation guide with torque specifications and connector pin‑out diagrams.

Our Remote Retrofitting Process

1. We confirm your VIN and current tailgate specification. A short diagnostic check verifies the exact modules already fitted to your vehicle. We then build a kit that matches your trim level, paint code, and body style.
2. We ship the complete hardware and the programming interface to you. The kit arrives in labelled, foam‑lined packaging. A pictorial guide shows the routing of the main harness along the factory cable channels inside the headlining and D‑pillar trims.
3. You plug the VCI into the OBD‑II port and switch the ignition on. At your scheduled time, our technician connects remotely and reads the existing Central Car Configuration. We add the appropriate sales code, programme the TCM, and calibrate the end‑stop travel limits.
4. We perform a live verification sequence with you. We guide you through a full function check: key fob open and close, cabin switch operation, anti‑pinch reversal, and hands‑free gesture activation. Every command receives confirmation in the diagnostic log before we sign off.
5. We disconnect and you keep the VCI. The interface remains with you for any future software updates. You receive a configuration report documenting every parameter change, which supports full traceability for your service history.

Compatible Land Rover & Jaguar Models

The powered tailgate retrofit is available for a broad range of JLR vehicles that share the same power spindle platform. The kit suits both left‑hand‑drive and right‑hand‑drive configurations without modification.

• Range Rover L405 (2013‑2021), L460 (2022 onwards)
• Range Rover Sport L494 (2014‑2021), L461 (2022 onwards)
• Range Rover Velar L560 (2017 onwards)
• Range Rover Evoque L551 (2019 onwards)
• Discovery 5 L462 (2017 onwards)
• Discovery Sport L550 (2015‑2019 and 2020 facelift onwards)
• New Defender L663 (2020 onwards)
• Jaguar F‑Pace X761 (2016 onwards)
• Jaguar E‑Pace X540 (2018 onwards)

Frequently Asked Questions

Does the hands‑free sensor work with a tow bar fitted?

Yes. We position the kick sensor in a location that avoids interference from the tow bar assembly. The system discriminates between a deliberate kicking motion and incidental under‑vehicle movement, so it will not trigger accidentally while you hitch a trailer.

Can I still open the tailgate manually if the battery is flat?

An emergency mechanical release cable remains accessible from inside the load space. The powered spindles include a clutch mechanism that allows manual override without damaging the gearbox.

Does the retrofit retain the original tailgate alignment?

Absolutely. The power latch and spindle brackets use the same mounting points as the manual components. The tailgate sits flush with the rear quarter panels, and the latch cinch action pulls the panel into the correct closed position every time.
