Reverse Traffic Detection (Blind Spot System) Retrofit for Land Rover & Jaguar

Reverse Traffic Detection watches the traffic you cannot see when you back out of a space. Rear radar sensors scan both sides of your vehicle and warn you the moment a vehicle, cyclist or pedestrian approaches from either direction. LR-Retrofit activates this advanced driver assistance system (ADAS) feature on compatible Jaguar and Land Rover models through factory-compliant software coding within your vehicle’s Central Configuration File (CCF). We use licensed JLR diagnostic tools and official calibration data. Where your vehicle lacks the radar hardware, we supply and install genuine JLR components before coding. You gain a proven safety function for one of the most demanding manoeuvres in everyday driving.

What Reverse Traffic Detection Delivers

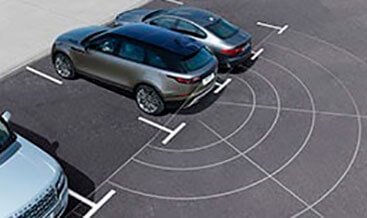

Reverse Traffic Detection shares its radar sensors with Blind Spot Assist. The system activates the moment you select reverse gear, and it scans a wide zone on both sides of your vehicle. Coverage extends up to approximately 20 metres, which gives you timely warning of traffic you cannot see through your mirrors or rear window.

The system delivers a two-stage warning. A standard alert triggers when traffic approaches at a moderate distance. A heightened alert follows when a vehicle closes rapidly or sits very close to your path. Each alert combines a visual indication in the corresponding door mirror with an audible chime through the audio system. That combination of sight and sound gives you an immediate, unmistakable signal without demanding that you look away from the manoeuvre.

On supported platforms, the system also requests braking force. When the Blind Spot Monitoring Control Module identifies an imminent collision risk, it asks the Anti-Lock Braking System (ABS) and Electronic Stability Program (ESP) to apply the brakes. That intervention can stop your vehicle before contact occurs. You can override it at any time by applying firm brake or accelerator input.

Reverse Traffic Detection also covers pedestrians and cyclists, not just other vehicles. That wider object recognition matters in car parks and residential streets, where smaller road users often travel behind parked vehicles.

Detection Coverage

Direction	Typical Range	Objects Detected	Warning Type
Left side	Up to approximately 20 metres	Vehicles, cyclists, pedestrians	Left mirror light plus chime
Right side	Up to approximately 20 metres	Vehicles, cyclists, pedestrians	Right mirror light plus chime
Both sides, imminent risk	Full monitored zone	Closing traffic at speed	Heightened alert, braking on supported platforms

How the System Works

Two short-range radar sensors mount in the rear bumper corners and operate at 24 GHz. They detect objects across a wide field of view. The Blind Spot Monitoring Control Module processes the radar returns and calculates position, distance and closing speed for every object it identifies. The module filters stationary items such as kerbs, fences and parked cars, which keeps nuisance alerts to a minimum.

The control module communicates over the vehicle’s CAN network. It reads the transmission range signal to confirm when you select reverse. Door modules then illuminate the warning lights in the mirrors, and the audio system delivers the chime. Where the platform supports braking intervention, the module sends a request to the ABS and ESP systems.

JLR fits the required wiring and mounting points to most compatible vehicles at the factory. Some models carry the radar sensors already, while others need genuine JLR units, brackets and a control module. We confirm exactly which components your vehicle needs during the pre-scan, and we complete any installation before coding.

Sensor Calibration

Accurate detection depends on correct sensor alignment. We complete a calibration routine after coding, which establishes the radar reference angle and confirms consistent coverage across the full zone. Where a rear bumper has seen repair work or a sensor has seen replacement, we verify alignment before we begin. Correct calibration prevents both missed detections and false warnings.

Compatible Vehicles

LR-Retrofit activates Reverse Traffic Detection on a wide range of Jaguar and Land Rover vehicles. The following platforms typically support this retrofit:

Land Rover Models	Jaguar Models
Defender L663 (2020–present)	F-Pace X761 (2016–present)
Range Rover L405 / L461 (2013–present)	XF X260 (2016–present)
Range Rover Sport L494 / L461 (2014–present)	XE X760 (2015–present)
Range Rover Velar L560 (2017–present)	E-Pace X540 (2018–present)
Discovery L462 (2017–present)	I-Pace X590 (2018–present)
Discovery Sport L550 (2015–present)	F-Type X152 (2013–present)
Evoque L538 / L551 (2012–present)

Our team confirms your vehicle’s exact configuration before we begin. We check your VIN, rear bumper sensor fitment, control module presence and current CCF settings to build a tailored plan.

Activation Process

LR-Retrofit performs Reverse Traffic Detection retrofits through a structured process:

• Vehicle assessment — we review your VIN and current configuration to determine hardware needs.
• Hardware installation — where required, we fit genuine JLR radar sensors, brackets and wiring.
• Software coding — we modify your vehicle’s CCF using licensed JLR diagnostic tools and official OEM data.
• Sensor calibration — we align the radar units and confirm accurate coverage across both detection zones.
• Functional validation — we scan for fault codes and verify warning behaviour in real reversing scenarios.

The process takes between two and four hours, depending on whether your vehicle requires hardware installation. We complete the work at our workshop or through a mobile service, depending on your location.

Why Choose LR-Retrofit

LR-Retrofit specialises in genuine Jaguar and Land Rover upgrades. We use original JLR parts, licensed diagnostic tools and factory calibration data. Our team brings deep technical knowledge of JLR platforms from 2005 to the present. Every retrofit matches manufacturer specification and integrates cleanly with your vehicle’s existing systems.

Reverse Traffic Detection pairs naturally with our Blind Spot Assist, Park Assist, Lane Keep Assist and Autonomous Emergency Braking activations. You can combine services during the same session and receive discounted package pricing.

Order Your Reverse Traffic Detection Retrofit

Take the next step toward safer, more confident reversing. Contact LR-Retrofit today to confirm compatibility for your Jaguar or Land Rover and schedule your Reverse Traffic Detection retrofit. Our team responds quickly and guides you through every step of the process.

Enquire now — your vehicle may already have the hardware it needs.

Note: Reverse Traffic Detection is a driver aid, not a substitute for careful driving. Drivers must remain attentive, check mirrors and look over their shoulder before reversing. System effectiveness depends on sensor cleanliness, weather conditions and the position of surrounding objects.
