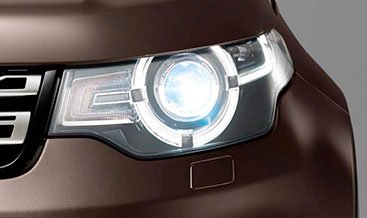

JLR Adaptive Xenon Headlights with LED Signature Retrofit

Dark country lanes and twisting motorway slip roads demand headlights that actively respond to the steering wheel. Our adaptive xenon headlights with LED signature retrofit upgrades your Land Rover or Jaguar from static illumination to an intelligent lighting system that follows every curve. The genuine JLR projector units deliver a wider, longer beam pattern with dynamic cornering that reduces blind spots by up to 90 percent. The crisp LED daytime running light signature modernises the front-end appearance and increases daytime conspicuity. Remote coding writes the adaptive front lighting system, automatic high beam assist, and LED signature options into your vehicle’s Central Car Configuration, making the upgrade indistinguishable from a factory installation.

The Advantage of Adaptive Xenon over Static Lighting

Static headlights illuminate a fixed cone of light directly ahead. The beam fails to follow the road through bends, leaving verges and apexes in shadow. Adaptive xenon projectors swivel the beam horizontally in proportion to steering angle and vehicle speed. The system draws data from the steering angle sensor and optional ride height sensors to calculate the optimal beam direction within milliseconds of a steering input. The result is a beam pattern that flows with the road, illuminating potential hazards earlier and reducing driver fatigue on long night journeys.

The LED signature element operates as a dedicated daytime running light, separate from the xenon dipped beam. It projects a continuous, bright line of light that instantly identifies the vehicle in rear-view mirrors and at junctions. Unlike filament DRL bulbs, the LED signature maintains consistent colour temperature and intensity for the life of the vehicle.

What the Retrofit Includes

Vehicles That Benefit from the Upgrade

Our adaptive xenon retrofit suits a wide range of JLR models that originally offered xenon or adaptive lighting as an option. We source the correct headlamp variant for your platform and model year:

• Range Rover L405 (2013‑2022)
• Range Rover Sport L494 (2014‑2022)
• Range Rover Velar L560 (2017 onward)
• Range Rover Evoque L538 (2012‑2019)
• Discovery 4 L319 (2009‑2016) with facelift lighting
• Discovery 5 L462 (2017 onward)
• Discovery Sport L550 (2015 onward) with available xenon option
• Jaguar XJ X351 (2010‑2019)
• Jaguar XF X250 (2008‑2015) and X260 (2016 onward)
• Jaguar F‑Pace X761 (2016 onward)
• Jaguar F‑Type X152 (2013 onward)

How We Carry Out the Installation and Coding

1. Pre‑installation diagnosis. The technician reads the existing Central Car Configuration and lighting module identities. This check confirms the presence of a suitable CAN bus gateway, steering angle sensor, and wiring preparation for ride height sensors.
2. Headlamp preparation. The adaptive xenon units receive a bench test to verify ballast strike, beam swivel range, and LED DRL function. Bulb condition and projector lens clarity meet factory standards before installation.
3. Physical fitting. The technician removes the existing headlamps, installs the AFS control module (where required), and routes the wiring overlay through factory channels. The new adaptive headlamps bolt into position using the correct torque values. Ride height sensors mount to suspension components and the wiring connects at designated points.
4. Network integration. The AFS module becomes visible on the CAN bus. The Body Control Module and Instrument Cluster learn the new lighting node during a network discovery cycle.
5. Remote CCF coding. Our engineer accesses the vehicle via DoIP and enables the adaptive front lighting system, automatic high beam assist, and dedicated LED DRL signature in the Central Car Configuration. The coding also adjusts the headlamp levelling strategy to coordinate with the ride height sensors.
6. Validation and calibration. The technician performs a static beam alignment, confirms the AFS self‑test cycle, and verifies the high beam assist masking response using a diagnostic light source. A final diagnostic report captures all module communication statuses and the updated CCF checksum.

Frequently Asked Questions

Will the LED signature operate as daytime running lights immediately?

Yes. The coding process activates the dedicated LED DRL circuit. The signature illuminates whenever the ignition is on and the headlamp switch remains in the Auto or Off position. The LED intensity dims slightly when the dipped beam activates, complying with ECE regulation requirements.

Does the retrofit enable automatic high beam assist?

The genuine adaptive headlamp units support high beam assist provided your vehicle has the forward-facing camera (usually integrated into the rear-view mirror housing). Where the camera exists, the coding process activates the feature and the system automatically masks oncoming traffic without dazzling other drivers. Vehicles without a forward camera still receive adaptive cornering and LED signature functionality.

What happens to the manual headlamp levelling switch?

Once coding enables dynamic levelling via the ride height sensors, the manual headlamp level adjuster becomes redundant. We either blank the switch position with a factory cover or recode the Body Control Module to ignore the redundant input, ensuring a clean interior appearance with no warning lights.

How does the retrofit affect the vehicle warranty?

We use only genuine JLR parts and follow the manufacturer’s routing and connection standards. The installation preserves the integrity of the factory wiring loom. The coding procedure writes the new features into the CCF in the same manner as a dealer retrofit, leaving no non‑standard entries. The vehicle’s original warranty remains unaffected.
