Digital Mirror Technology with Camera Display for Unobstructed Rear Visibility
Advanced Digital Mirror Technology for Enhanced Visibility
The Land Rover ClearSight interior rear view mirror system represents a significant advancement in rearward visibility technology. This factory-grade retrofit replaces the conventional reflective mirror with a high-definition digital display that provides an unobstructed view of the road behind your vehicle. The system integrates seamlessly with Land Rover’s electrical architecture to deliver superior visibility in all driving conditions.
System Architecture and Technical Integration
Land Rover engineers designed the ClearSight mirror system as a fully integrated component of the vehicle’s vision systems. The digital mirror assembly contains a high-resolution LCD display that receives input from a dedicated rear-facing camera mounted in the vehicle’s rear spoiler or high-mounted brake light assembly. This configuration provides an optimal viewing angle free from interior obstructions.
High-Resolution Display Technology
The ClearSight mirror features a 9.2-inch LCD display with 1280×480 resolution, delivering exceptional image clarity and detail. The display maintains perfect visibility regardless of interior lighting conditions or passenger/load obstructions in the cabin.
Dual-Function Operation

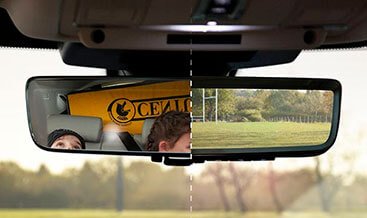

The system operates in two distinct modes: digital display mode for camera-based viewing and conventional reflective mode for traditional mirror functionality. A simple touch control switches between modes based on driver preference.
Intelligent Image Processing
Advanced image processing algorithms enhance visibility in low-light conditions, reduce glare from following vehicles, and maintain consistent image quality across varying light levels. The system automatically adjusts brightness and contrast for optimal viewing.
Vehicle Network Integration
The ClearSight system integrates with the vehicle’s CAN network, communicating with the body control module, lighting systems, and rear camera modules to coordinate display functions with other vehicle systems.
Operational Features and Performance Benefits
- Unobstructed Rearward Vision: The camera-based view eliminates visibility limitations caused by rear headrests, passengers, or cargo, providing a clear, wide-angle view of the road behind the vehicle.
- Enhanced Night Visibility: The digital display significantly improves rearward visibility in low-light conditions, with image processing that enhances detail beyond what conventional mirrors can provide.
- Automatic Glare Reduction: Intelligent algorithms detect and reduce glare from following vehicle headlights, minimizing eye strain and improving driving comfort during nighttime operation.
- Wide-Angle Field of View: The rear camera provides a 50-degree field of view, substantially wider than conventional mirrors, enhancing situational awareness and safety during lane changes and reversing maneuvers.
- Seamless Mode Transition: Instant switching between digital and conventional mirror modes ensures drivers maintain rearward visibility even during system initialization or if camera view becomes temporarily unavailable.
- Integrated Auto-Dimming: The system maintains Land Rover’s signature auto-dimming functionality in both digital and conventional modes, with enhanced performance in digital mode through electronic dimming algorithms.
Technical Specifications and Integration
| Component | Specification | Functional Benefit |
|---|---|---|
| Display Unit | 9.2″ LCD, 1280×480 resolution, 500 cd/m² brightness | Crisp, clear image visibility in all lighting conditions |
| Rear Camera | HD camera with 50° field of view, f/2.0 aperture | Wide-angle view with excellent low-light performance |
| Image Processor | Dedicated image processing unit with HDR capability | Enhanced dynamic range and glare reduction |
| Vehicle Integration | CAN network communication, LIN bus control | Seamless operation with vehicle lighting and safety systems |
| Power Management | Intelligent power cycling with vehicle sleep/wake cycles | Minimal battery drain with instant system readiness |
The ClearSight system receives power through the vehicle’s overhead console circuit and integrates with the existing rear camera systems where applicable, minimizing additional wiring requirements.
Safety and Convenience Benefits
The ClearSight interior mirror system provides substantial safety advantages over conventional mirrors. The unobstructed rearward view significantly reduces blind spots created by vehicle occupants or cargo. The enhanced night visibility and glare reduction features improve driver comfort and reduce eye fatigue during extended nighttime driving.
For vehicles frequently used for family travel or cargo transport, the system maintains perfect rearward visibility regardless of how the rear seating area or cargo area is configured. This eliminates the need to adjust headrests or rearrange items to maintain mirror visibility.
Professional Installation Procedure
Our factory-certified technicians perform each ClearSight mirror installation following Land Rover technical specifications and procedures:
- Vehicle Assessment: Comprehensive evaluation of existing mirror assembly, overhead console configuration, and rear camera mounting options to determine specific installation requirements.
- Camera Installation: Professional installation of the high-definition rear camera in the optimal location, typically integrated with the rear spoiler or high-mounted brake light assembly for ideal viewing angle.
- Mirror Assembly Installation: Careful replacement of the conventional mirror assembly with the ClearSight digital mirror unit, ensuring proper mechanical mounting and electrical connections.
- System Integration: Connection to vehicle power circuits, CAN network communication lines, and integration with existing camera systems where applicable.
- Calibration and Testing: Comprehensive system calibration, display alignment verification, and functional testing of all operating modes and transition functions.
The complete installation typically requires 3-4 hours, depending on specific vehicle configuration and existing equipment.
Vehicle Compatibility
The ClearSight interior mirror retrofit system supports these Land Rover models:
- Range Rover (L405) – 2017 to 2021 with compatible overhead console
- Range Rover (L460) – 2022 onwards with vision pack compatibility
- Range Rover Sport (L494) – 2018 to 2022 with premium overhead console
- Range Rover Sport (L461) – 2023 onwards
- Range Rover Velar – 2020 onwards with technology pack
- Discovery 5 – 2019 onwards with vision assist package
- Defender (L663) – 2021 onwards with advanced tow pack
Technical Note: Installation requires specific overhead console configurations and may require additional camera mounting provisions on some vehicle specifications. Our technical team performs pre-installation compatibility verification for each vehicle.
Experience Unobstructed Rearward Visibility
Upgrade your Land Rover with the advanced ClearSight digital interior mirror system. This factory-grade retrofit provides superior rearward visibility free from interior obstructions, enhancing both safety and driving comfort in all conditions.
The complete retrofit package includes the genuine Land Rover ClearSight mirror assembly, high-definition rear camera module, all necessary mounting hardware and wiring harnesses, and professional installation by factory-certified technicians.
