Heated Front Seats Retrofit Installation

Experience the enveloping warmth of genuine Land Rover heated front seats, retrofitted to your vehicle with complete factory fidelity. Our service installs the original equipment heating elements directly into your existing seat cushions and backrests, integrating them with the vehicle's climate control architecture so they operate exactly as the JLR engineers designed. You command three graduated heat levels through your central touchscreen, and the seats warm from the base up within two minutes of activation.

We supply and install the complete heated seat kit: genuine Land Rover carbon-fibre heating pads for both front cushion and backrest on each seat, the correct seat wiring harness with OEM‑specification terminals, a replacement climate control panel where required, and the necessary body‑to‑seat power looms. The system draws its supply through a dedicated fused circuit that mirrors the factory wiring diagram, and the heating elements sit precisely in the factory‑designated channels within the foam, secured to prevent any movement or bunching.

Factory‑Spec Integration with Touchscreen Control

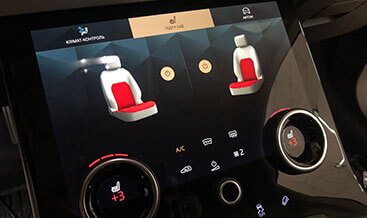

The retrofit delivers the identical user experience of a vehicle ordered with the Cold Climate Pack or heated seat option from the production line. Our JLR‑trained technicians update the Central Junction Box, HVAC module, and Instrument Pack Cluster with the correct CCF configuration, causing the heated seat icons to appear in the climate quadrant of your Pivi Pro or InControl Touch display. Each seat receives independent three‑stage control, and the system respects the automatic climate logic: the seats activate in tandem with heated screens and steering wheel when you remote‑start the cabin, based on ambient temperature thresholds defined in the HVAC calibration.

The heating elements operate in parallel across the cushion and backrest zones, delivering even thermal distribution without hot spots. The carbon‑fibre matrix achieves operating temperature in under 90 seconds, and the embedded thermistors provide continuous feedback to the seat heating module, preventing overshoot and maintaining the selected output level regardless of cabin temperature fluctuations.

What the Installation Involves

• Seat Disassembly & Preparation – We remove each front seat from the vehicle and carefully release the leather or textile covers using the factory hog‑ring and clip tools. The original foam contours remain undisturbed, preserving the seat's ergonomic shape and lumbar support integrity.
• Heating Element Placement – Genuine JLR heating pads position into the dedicated recesses moulded into the seat cushion and backrest foams. We apply a light adhesive backing exactly as specified in the workshop manual, ensuring the pads lie flat with no creasing or air gaps that could compromise heat transfer.
• Wiring Harness Integration – We route the seat‑side harness through the existing cable channels and connect each heating element using the factory‑style connectors. The power and CAN‑bus sub‑looms run beneath the carpet along the original wiring paths, terminating at the Central Junction Box and HVAC module with the correct pin assignments.
• Switchgear & Module Coding – If your vehicle lacks the heated seat buttons on the climate control panel, we replace the panel with the correct genuine assembly. Our diagnostic session writes the heated seat configuration to the CJB, HVAC and IPC modules, activates the touchscreen softkeys, and verifies bidirectional communication between the seat thermistors and the control module.
• Quality Validation & Road Test – We perform a full heat‑output verification using thermal imaging to confirm even pad performance across both seats. A diagnostic scan clears any incidental DTCs, and we road‑test the vehicle to ensure no seat‑related squeaks or trim rattles exist.

Why Choose LR-Retrofit

• Genuine JLR Heating Elements – We exclusively use factory‑spec carbon‑fibre pads with the correct resistance values for your model. Aftermarket alternatives cannot match the thermal profile or durability of the Land Rover components.
• Complete Wiring Integrity – Every terminal, connector and fuse matches the OEM specification. The installation introduces no scotch‑locks, T‑taps or non‑weatherproof joints into the vehicle's electrical system.
• Full Touchscreen Functionality – The heated seat controls materialise in the climate display with three touch‑activated levels, plus the automatic climate synchronisation. The softkeys behave identically to a production‑line fitment.
• Preserved Seat Comfort – The heating pads add negligible thickness to the foam, so the seat feel, bolster support and lumbar adjustment remain exactly as you know them. The covers refit with factory tension and seam alignment.
• Retrofit Certification – Each installation comes with a detailed certificate recording the genuine part numbers, installation date and coding session. This document supports your vehicle's optional equipment provenance for resale or warranty purposes.
• Same‑Day Service – The complete installation, from seat removal to final quality check, finishes within a single working day. We protect your interior with soft covers, steering wheel guards and sill protectors throughout the process.

This upgrade transforms cold‑weather motoring into a genuinely luxurious experience. The rapid, even warmth reduces the reliance on cabin heating during short journeys, which benefits fuel economy and extends the usable electric range on plug‑in hybrid models. Passengers notice the difference immediately, yet the installation remains entirely invisible behind the original seat trim. Every stitch, every connector and every line of code carries the LR‑Retrofit commitment to original equipment authenticity.

Ready for Genuine Heated Comfort?

Share your VIN with us for an instant compatibility check, and we reserve a workshop bay for your Land Rover. Our team fits genuine heated front seats across the Range Rover, Range Rover Sport, Velar, Evoque, Discovery and Defender platforms. Drive away with the same heated seat performance that defines the JLR luxury experience, fully integrated and fully warrantied.
