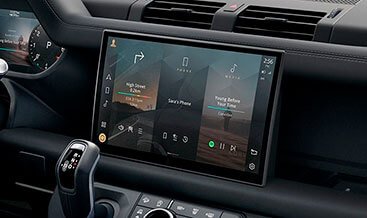

The 11.4-inch Pivi Pro touchscreen is JLR’s mid-generation flagship display, and it transforms the cabin interface in ways a software update alone cannot achieve. The curved glass surface measures 62 percent larger than the standard 10-inch unit and delivers up to three times the brightness of the earlier screen. The additional real estate shows more of the navigation route, exposes more climate and vehicle controls without menu diving, and gives the entire interior a more modern, integrated appearance. JLR introduced this display as standard equipment on most Defender L663 trims and later extended it across the Velar and other Pivi Pro platforms.

Many vehicles left the factory during the semiconductor shortage with the smaller 10-inch Pivi Pro screen, and early base-spec builds carried lower-specification infotainment hardware. This retrofit installs the genuine 11.4-inch curved-glass display assembly and activates the full factory function set through certified Pathfinder DOIP programming. The result is not a bolted-on aftermarket panel. The vehicle recognises the larger screen at the module level, calibrates touch zones to the new geometry, and routes climate-control and vehicle-function interfaces through the updated display exactly as a factory-optioned 11.4-inch build does.

Why the Display Swap Requires More Than Hardware

Physical fitment accounts for half the installation. The Infotainment Master Controller (IMC) drives the display over the vehicle’s DOIP high-speed Ethernet backbone, and it holds the screen-resolution profiles, touch-zone maps, and climate-control interface routing tables for the factory-fitted display size. Swap the hardware without updating those parameters and the IMC continues to address the old 10-inch geometry. The larger screen shows a stretched or cropped image, touch inputs land in the wrong zones, climate controls fail to appear in their new locations, and the gateway logs infotainment configuration-mismatch DTCs.

Generic aftermarket coding cannot reproduce JLR’s factory touch-zone calibration, display-resolution mapping, or climate-control integration logic. Incomplete configuration produces intermittent IMC faults, unresponsive screen regions, missing HVAC menus, or persistent infotainment warning illumination. Our technicians program the Car Configuration File through official JLR Pathfinder DOIP sessions, updating only validated IMC, BCM, and GWM parameters. The calibration includes screen-resolution matching, touch-zone remapping to the larger glass area, and climate-control integration so the new display manages HVAC functions in their factory positions. Every factory display-safety limit and diagnostic-logging routine stays fully intact.

Technical Specifications

Hardware Kit and Dashboard Integration

The retrofit kit includes the genuine JLR 11.4-inch Pivi Pro display assembly, verified by VIN against your target specification. The dashboard aperture differs between the 10-inch and 11.4-inch screens, so the kit supplies the updated bezel and surround panel that seats the larger glass flush with the instrument panel[reference:5]. Mounting brackets match the factory fixing points, and the wiring connector families remain consistent across Pivi Pro variants in most applications. We verify harness provisioning during the VIN check and supply adaptors where the build date requires them.

The installation is careful trim work rather than mechanical surgery. Dashboard panels come off, the original screen disconnects, and the new assembly seats in the same aperture with the updated surround. No cutting, drilling, or permanent modification is required. Every panel and fastener returns to original torque specification and fitment.

Supported Models and VIN Verification

This retrofit suits DOIP-architecture JLR vehicles running the Pivi Pro infotainment platform. The primary compatible platform is the Defender L663 (2020 onwards), where most trims carry the 11.4-inch display as standard and early or base-spec vehicles left the factory with the smaller 10-inch unit. The Velar L560 (2021 onwards with Pivi Pro) also supports the upgrade, and later Pivi Pro-equipped Jaguar DOIP models qualify subject to IMC firmware and display-connector compatibility.

We run a VIN check on every order. That check confirms the existing infotainment tier, dashboard aperture specification, harness provisioning, and IMC firmware version. Some vehicles carry partial pre-wiring for the larger display; others require the full harness adaptor set. We identify the exact configuration before dispatch, so the installation proceeds without missing bezels, brackets, or connectors.

Installation and Remote Calibration

A qualified installer powers down the vehicle properly, waits for the bus network to sleep, and removes the centre console trim around the existing display. The original screen disconnects, the new 11.4-inch assembly mounts on its factory brackets with the updated bezel, and the harness connects without splicing. We provide a stabilised power supply for the coding phase, because any write on a DOIP vehicle demands stable voltage throughout the session.

After mechanical fit-out, our technician joins a remote Pathfinder DOIP session through a compatible VCI. We read the existing IMC configuration, write the 11.4-inch display variant code, update the BCM and GWM CCF flags, and run the screen-resolution and touch-zone calibration routines. The functional test verifies image alignment across the full curved glass, confirms responsive touch input at every edge zone, validates climate-control integration through the new display menus, and checks for residual infotainment DTCs across the IMC, BCM, and GWM. We document the configuration changes and confirm that the original 10-inch settings remain available for reversal.

What the Cabin Gains

The larger display reshapes the cabin’s visual and functional character. The curved glass surface integrates cleanly into the dashboard rather than sitting as a rectangular add-on. The 62 percent increase in surface area gives navigation maps more breathing room, places climate and media controls within easier reach, and reduces the menu depth required for common functions. The threefold brightness increase keeps the screen legible in direct sunlight where the standard display washes out[reference:9]. Haptic feedback, where the vehicle’s trim level supports it, confirms touch inputs without the driver glancing away from the road. Wireless CarPlay and Android Auto activation often accompanies the calibration, depending on the vehicle’s existing feature set. Every factory infotainment source — navigation, media, phone, and vehicle settings — operates through the upgraded display path.

Ordering and Activation Support

Select your model and model year at checkout and provide your VIN. Our team confirms existing infotainment tier, dashboard aperture compatibility, harness provisioning, and IMC firmware eligibility before releasing the kit or booking the coding session. You receive the genuine 11.4-inch Pivi Pro display assembly, the updated bezel and mounting brackets, any required harness adaptors, and the remote Pathfinder calibration appointment. Our engineers support the session from pre-scan through post-calibration touch-zone validation.

Upgrade to the curved-glass interface your Pivi Pro platform was built to drive. Genuine JLR 11.4-inch hardware. Pathfinder DOIP activation. Factory-level display integration.
