OEM-style Head-Up Display upgrade for Jaguar Land Rover vehicles
See Essential Driver Data Without Looking Down

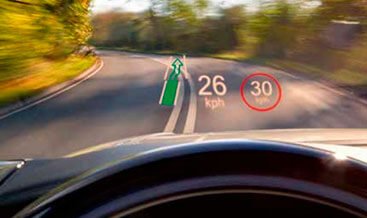

The Head-Up Display projects key driver information directly into your line of sight. You keep your eyes on the road while speed, navigation prompts and driver assistance alerts appear on the windscreen. Our JLR retrofit installs the genuine Head-Up Display module into your vehicle and programs it to your exact specification.
You benefit from a factory-level integration that does not require additional screens or aftermarket brackets. The system reads vehicle data from the CAN network and instrument cluster. You receive clear, high-contrast information in all lighting conditions.
OEM Head-Up Display Components
Our Head-Up Display retrofit kit includes the following genuine JLR parts:
- Head-Up Display module – projects the optical image onto the windscreen
- Upper dash trim panel – replaces the standard panel with the correct HUD aperture
- Wiring loom and connectors – integrates with the vehicle CAN bus and power supply
- Instrument cluster coding – enables HUD menus and display outputs
- Windscreen compatibility check – confirms optical clarity for a sharp image
We supply every component required for a complete installation. You receive the same hardware that JLR fits at the factory.
Technical Integration
The Head-Up Display module communicates with the vehicle through the high-speed CAN network. It receives speed data, turn-by-turn navigation instructions, gear selection and driver assistance alerts from the instrument cluster and infotainment system. The module projects a virtual image approximately 2.4 metres ahead of the driver. You read the information without refocusing your eyes from the road.
Our technicians configure the module using JLR diagnostic equipment. They update the vehicle configuration file, enable the HUD function in the instrument cluster and align the optical output to your seating position. The installation follows JLR workshop procedures and retains all original vehicle functions.
Display Features
- Speed limit display – shows the current road speed limit from navigation data
- Vehicle speed – presents your speed as a clear digital readout
- Navigation prompts – shows junction and lane guidance ahead of turns
- Driver assistance alerts – displays adaptive cruise control, lane keep assist and blind spot warnings
- Gear selection – indicates the active gear in automatic or manual mode
- Phone and media information – shows caller ID and audio track details when you use steering wheel controls
You adjust brightness, height and content through the existing instrument cluster menu. The system remembers your preferences for each driver profile.
Compatible Jaguar Land Rover Models
The Head-Up Display retrofit suits select JLR vehicles that have the required digital instrument cluster and electrical architecture. Examples include:
- Range Rover L405 (2013–2022)
- Range Rover Sport L494 (2013–2022)
- Range Rover Velar L560 (2017–present)
- Land Rover Discovery 5 L462 (2017–present)
- Jaguar XF X260 (2015–present)
- Jaguar F-Pace X761 (2016–present)
We verify your vehicle VIN before dispatch. This step ensures the correct module, trim panel and coding package. You avoid compatibility issues and receive a plug-and-play installation.
Specifications
| Specification | Detail |
|---|---|
| Module type | OEM JLR Head-Up Display unit |
| Integration | High-speed CAN bus |
| Projection distance | Approximately 2.4 metres ahead of driver |
| Adjustment | Height, brightness and content via cluster menu |
| Installation | Dash trim replacement, wiring loom and coding |
Why Choose the LR-Retrofit Head-Up Display Upgrade
You receive a complete genuine JLR solution, not a universal aftermarket projector. Our team specialises in Jaguar Land Rover electrical retrofits. We provide remote coding support and detailed installation guidance for professional workshops or confident DIY owners. You also get access to our technical support team before and after installation.
You keep full control of your vehicle configuration. We supply the HUD retrofit as a reversible upgrade. The original dash panel remains available if you ever remove the system.
