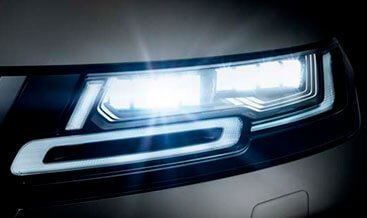

JLR Matrix LED Headlight Retrofit
OEM Adaptive Driving Beam technology with glare-free high beam and dynamic light distribution for enhanced nighttime driving safety
Advanced Matrix LED Lighting Technology
Our JLR Matrix LED headlight retrofit delivers complete adaptive driving beam technology that transforms your nighttime driving experience. The system provides intelligent light distribution that automatically adapts to traffic conditions, road geometry, and environmental factors. Each headlight unit contains multiple individually controlled LED segments that work together to create precise light patterns.
We implement genuine JLR Matrix LED technology with full integration into the vehicle's camera systems and control modules. Our retrofit solution maintains all original functionality while adding advanced adaptive features that enhance both illumination performance and driving safety. The system continuously monitors the road ahead and adjusts light distribution in real-time.
Matrix LED System Features
Glare-Free High Beam
Intelligent light masking prevents dazzling other road users while maintaining maximum illumination in all other areas.
Dynamic Bending Light
LED segments dynamically illuminate curves and corners based on steering angle, vehicle speed, and navigation data.
Adaptive Town Light
Automatically adjusts beam pattern and intensity in urban environments to optimize visibility and minimize glare.
Weather-Adaptive Lighting
Special light patterns for rain, fog, and snow conditions that reduce reflections and improve road surface visibility.
Pixel-Level Light Control
The Matrix LED system controls each LED segment independently with millisecond response times. A forward-facing camera detects vehicles, pedestrians, and road signs up to 800 meters ahead. The control module processes this information and dynamically adjusts the light distribution to provide optimal illumination without causing discomfort to other road users. This technology represents a significant advancement over conventional adaptive headlight systems.
| Technical Specification | Performance Metric | System Benefit |
|---|---|---|
| LED Segments per Headlight | 84 Individual Elements | Precise light distribution and masking control |
| Maximum Illumination Range | 650 Meters | Extended forward visibility at highway speeds |
| Camera Detection Range | 800 Meters | Early identification of vehicles and obstacles |
| Response Time | 50 Milliseconds | Instantaneous adaptation to changing conditions |
| Luminous Flux | 2,100 Lumens per Headlight | Superior road illumination compared to halogen/xenon |
| Power Consumption | 75W Total System | Energy efficient operation with minimal electrical load |
Vehicle Compatibility & Requirements
Supported JLR Platforms
- Range Rover (L405) – 2017-2022 with camera system
- Range Rover Sport (L494) – 2018-2022 with front camera
- Range Rover Velar (L560) – 2019-Present all trims
- Range Rover Evoque (L551) – 2020-Present with tech pack
- Land Rover Discovery 5 (L462) – 2019-Present HSE models
- Land Rover Defender (L663) – 2020-Present with driver pack
- Jaguar F-Pace (X761) – 2020-Present with camera
- Jaguar XF (X260) – 2020-Present premium trim
- Jaguar I-Pace – 2019-Present all versions
System Requirements: Vehicles require an existing forward-facing camera system for Matrix LED functionality. Our technicians perform comprehensive pre-installation diagnostics to verify camera compatibility, control module configuration, and wiring harness requirements. We can also install necessary camera systems where not originally equipped.
Professional Installation Process
Step 1: Vehicle Diagnostics & Assessment
We conduct complete vehicle diagnostics using JLR SDD/Pathfinder software to verify headlight control module compatibility, camera system functionality, and identify any required software updates or coding changes.
Step 2: Headlight Assembly Installation
Our technicians follow JLR technical service procedures for front bumper removal and headlight assembly replacement. We install genuine Matrix LED units with proper alignment and connection to vehicle electrical systems.
Step 3: Control Module Programming
We configure the headlight control module (HCM), body control module (BCM), and image processing module (IPMB) to enable Matrix LED functionality. This includes calibration of camera-based detection systems.
Step 4: Camera System Integration
We ensure proper communication between the forward-facing camera and headlight control modules. Our technicians calibrate the camera alignment and verify object detection accuracy for optimal Matrix LED performance.
Step 5: System Calibration & Testing
We perform dynamic calibration of the Matrix LED system using JLR-approved calibration equipment. Our testing includes functional verification of all adaptive lighting modes and safety systems.
Our certified technicians maintain current JLR technical certifications and follow all factory service procedures. We use proper diagnostic equipment for module programming and conduct comprehensive road testing to verify system performance under real driving conditions.
Performance & Safety Benefits
- Enhanced Nighttime Visibility: The system provides up to 650 meters of illuminated road ahead with intelligent adaptation to traffic conditions
- Reduced Driver Fatigue: Automatic beam adjustment minimizes manual headlight operation and optimizes illumination for current conditions
- Improved Pedestrian Detection: Special light patterns enhance visibility of pedestrians and cyclists in urban environments
- Weather-Adaptive Performance: Optimized light distribution for rain, fog, and snow conditions reduces glare and reflections
- Seamless Integration: Full integration with vehicle driver assistance systems including lane keeping and traffic sign recognition
- Energy Efficiency: LED technology provides superior illumination with lower power consumption than conventional systems
Complete Retrofit Package
- Genuine JLR Matrix LED headlight assemblies (left and right)
- Headlight control module programming and configuration
- Camera system calibration and integration
- All necessary mounting hardware and electrical connectors
- Professional installation by JLR-certified technicians
- Comprehensive system testing and dynamic calibration
- 24-month warranty on all components and installation
- Full integration with vehicle touchscreen controls
- Preservation of all original lighting functions including DRL and indicators
Upgrade to Matrix LED Technology
Experience the next generation of automotive lighting with our OEM Matrix LED headlight retrofit. Our technical specialists deliver complete installation services with full system integration for your JLR vehicle.
Contact our retrofit team today to discuss compatibility assessment and schedule your installation.
Request Matrix LED Retrofit Quote
Typical installation time: 4-5 hours | Full system warranty included | Camera integration available if required
