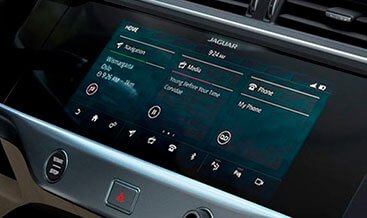

Radio Frequency Adjustment (for USA Vehicles)

Radio Frequency Adjustment for USA Vehicles unlocks the complete FM frequency band on US-market Jaguar and Land Rover vehicles. Vehicles built for the United States leave the factory tuned to odd FM frequencies only, so the tuner stops at 97.9 and skips 97.8 entirely. Many broadcasters outside North America transmit on even frequencies, which means a US-spec vehicle loses access to a large portion of the dial when it travels or relocates. This service edits the tuner region parameter inside your Car Configuration File and enables the full FM band without any hardware replacement. You gain every station on the dial, and the tuner behaves exactly as a factory-installed local-market system.

Why US-Market Vehicles Restrict FM Frequencies

The Federal Communications Commission allocates FM broadcast channels at 200 kHz intervals across the United States. That spacing places every station on an odd decimal frequency, such as 88.1, 88.3, 97.9, or 107.9. Manufacturers configure the tuner region accordingly, so the head unit presents only those frequencies to the driver.

Most other regions allocate FM channels at 100 kHz intervals. That spacing places stations on both odd and even decimal frequencies, such as 88.10, 88.20, 97.80, or 97.90. A US-spec tuner cannot reach the even frequencies because its regional configuration excludes them. The hardware itself supports the full band in most cases, which means the restriction lives in the configuration rather than the tuner module.

How the Adjustment Works

The Car Configuration File (CCF) stores the tuner region parameter alongside hundreds of other vehicle settings. That parameter tells the infotainment head unit which frequency grid to present. We read the current CCF through a JLR-approved diagnostic pathway, locate the tuner region value, and confirm that your head unit hardware supports the wider frequency range.

We then archive the original configuration, write the corrected tuner region parameter, and reset the affected modules. The Body Control Module and Gateway Module distribute the updated configuration across the network. The infotainment head unit reloads its tuner mapping on the next ignition cycle and presents the full FM band.

After the write, we verify reception by tuning across the dial and confirming that even frequencies respond. We check station name display, RDS data, and preset storage to make sure every radio function behaves correctly. You receive written documentation of the original value, the corrected value, and the verification result.

Key Features

• Full FM band access enables both odd and even frequencies across the complete dial.
• VIN-specific CCF editing writes the correct tuner region parameter for your vehicle.
• No hardware replacement preserves your factory head unit, antenna, and wiring.
• Complete CCF archive captures your original configuration before any change.
• Multi-module synchronisation distributes the updated setting through the Body Control Module and Gateway Module.
• Reception verification confirms even-frequency tuning, RDS data, and station name display.
• Preset compatibility retains your stored station presets after the adjustment.
• Diagnostic-safe programming generates no fault codes and keeps every module healthy.
• Reversible through the archived original configuration at any time.
• Written documentation records every value we read, write, and verify.

Technical Specifications

Parameter	Specification
Service Name	Radio Frequency Adjustment (for USA Vehicles)
Configuration File	Car Configuration File (CCF) – tuner region parameter
Affected Modules	Body Control Module / Gateway Module, Infotainment Head Unit
Frequency Range	Full FM band with 100 kHz spacing (odd and even frequencies)
US Factory Setting	Odd FM frequencies only with 200 kHz spacing
Hardware Requirement	Compatible head unit with wideband tuner capability (verified before the write)
Diagnostic Platform	JLR-approved pathway with DOIP VCI interface
Backup Protocol	Full CCF archive captured before modification
Verification Method	Frequency sweep confirming even-frequency reception, RDS data, and preset storage
Typical Duration	30 to 60 minutes including verification
Reversibility	Fully reversible through the archived original configuration

Vehicle Compatibility

Radio Frequency Adjustment supports US-market Jaguar and Land Rover vehicles equipped with a compatible infotainment head unit. Compatible models include:

• Range Rover (L405, L460)
• Range Rover Sport (L494, L461)
• Range Rover Velar (L560)
• Range Rover Evoque (L538, L551)
• Discovery (L462) and Discovery Sport (L550)
• Defender (L663)
• Jaguar F-Pace, E-Pace, I-Pace
• Jaguar XE, XF, and XJ models with compatible infotainment

Your vehicle must carry a head unit with wideband tuner capability. We verify the head unit part number and software level before we begin. Some older or base-level units use a narrower tuner that cannot reach the full band regardless of configuration, and we confirm the position against your VIN before you commit. If your head unit cannot support the wider range, we advise you directly rather than take your order.

What the Adjustment Includes

• Full CCF read and archive capturing your vehicle’s original configuration.
• Head unit part number and software verification confirming wideband tuner capability.
• VIN-specific tuner region parameter writing through JLR-approved diagnostic pathways.
• Module reset and network synchronisation across the Body Control Module and Gateway Module.
• Frequency sweep verification confirming even-frequency reception and RDS data.
• Preset storage and station name display check.
• Written documentation recording original value, corrected value, and verification result.
