Reverse Traffic Detection (Blind Spot System) — JLR Reversing Radar Warning Activation
Activate Reverse Traffic Detection on your Jaguar or Land Rover vehicle. This function uses the rear quarter radar sensors to watch for vehicles crossing behind you while you reverse. We configure the radar modules, edit the Car Configuration File (CCF), and code every module in the warning chain through official JLR Pathfinder and SDD platforms.
Reversing out of a parking space puts you at a genuine disadvantage. Parked cars, hedges, and pillars block your view, and approaching traffic moves faster than your mirrors can track. Reverse Traffic Detection removes that blind moment. The system scans the road behind you from the instant you select reverse gear, then warns you the moment a vehicle enters the crossing zone.
What JLR Reverse Traffic Detection Delivers

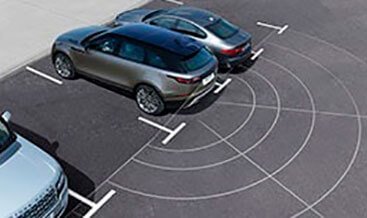

Reverse Traffic Detection (RTD), which JLR also markets as Rear Cross Traffic Alert on some platforms, activates automatically when the driver selects reverse gear. The system monitors a wide detection corridor extending laterally from each rear corner of the vehicle. When a vehicle approaches within that corridor, RTD issues a warning through the door mirror indicators, an audible chime, and a message on the instrument cluster or infotainment display.
On vehicles fitted with a surround camera system, the warning appears as an overlay on the reversing camera view. This combination gives you both a visual image of the space behind and a directional alert showing which side the traffic approaches from. The system typically operates at low reversing speeds and monitors lateral approaches at distances of up to 20 metres, with some platforms extending detection further for faster closing traffic.
RTD sits inside the same radar network as Blind Spot Monitoring System (BSMS). Both functions read the same rear quarter radar sensors, which is why we activate RTD as part of a blind spot system service. Where a vehicle already runs BSMS, RTD often needs only a parameter change rather than new hardware.
Modules and Components We Work With
Our service covers every part of the RTD warning chain:
- Master and slave rear quarter radar sensors — The radar units that scan the crossing zones behind the vehicle
- Blind Spot Monitoring Control Module (BSMCM) — The module that processes radar returns and triggers RTD warnings
- Body Control Module (BCM) — The module that manages chime requests and mirror indicator output
- Instrument Panel Cluster (IPC) — The display that presents the RTD warning message
- Infotainment head unit and camera module — The display system that shows the warning overlay on the reversing camera view
- Parking Aid Module (PAM) — The module that coordinates RTD with ultrasonic parking sensor warnings
- Gateway Module (GWM) — The module that routes radar and warning messages across the vehicle network
Our Activation Process
We follow a structured JLR workflow that protects your vehicle configuration and delivers reliable results:
- VIN Read and Hardware Verification: We read your VIN and confirm that your vehicle carries the rear quarter radar sensors and door mirror indicators that RTD requires.
- CCF Backup: We save a complete backup of your original Car Configuration File before we change anything. You keep a copy for your records.
- Parameter Configuration: We edit the blind spot and RTD parameters, then align the regional variant codes with your market requirements.
- Module Coding: We connect our DoIP VCI and write the updated configuration to the radar sensors, BSMCM, BCM, IPC, and PAM through Pathfinder or SDD.
- Radar Calibration: We run the required calibration routines so both rear sensors report accurate angles and distances.
- Functional Testing: We test the system with a controlled crossing target. We verify warning direction, chime behaviour, mirror indicator illumination, and display messaging.
- Report: We provide a written record of the parameters we configured and the tests we completed.
Hardware Your Vehicle Needs
RTD activation requires specific factory hardware. Your vehicle must carry rear quarter radar sensors, door mirrors with warning indicators, and the supporting wiring and mounting brackets. JLR fitted many vehicles with this hardware as part of a driver assistance pack, so plenty of cars already support a straightforward software activation. Where a vehicle lacks the components, we supply and install them as a complete retrofit, and we calibrate the new sensors as part of the work.
Vehicle Compatibility
| Vehicle Era | Diagnostic Platform | Common Models |
|---|---|---|
| 2005–2016 | JLR SDD | Range Rover L322, Range Rover Sport L320, Discovery 4, Evoque L538, Jaguar XF, XJ |
| 2017–Present | JLR Pathfinder | Range Rover L405/L460, Range Rover Sport, Velar, Defender L663, Discovery 5, Discovery Sport, Jaguar F-Pace, E-Pace, I-Pace |
| 2017–Present | TOPIx Cloud | All models requiring online security authentication |
Driver Responsibility and Compliance
Reverse Traffic Detection supports the driver; it does not replace the driver. The system cannot detect every object, and weather, road spray, sensor obstruction, and extreme approach angles can reduce performance. You remain responsible for checking your mirrors, looking over your shoulder, and reversing only when you judge the manoeuvre safe. Keep the rear bumper and sensor areas clean, and use the system in line with the laws that apply in your region.
Why Choose LR Retrofit
- Official JLR Platforms: We use Pathfinder, SDD, and TOPIx Cloud, the same tools JLR dealers use worldwide.
- Genuine Components: We fit original JLR radar sensors, mirrors, and looms that integrate cleanly with your vehicle.
- VIN-Specific Configuration: Every setting matches your exact vehicle build and market region.
- Full Sensor Calibration: We calibrate both rear radar units so warnings arrive at the correct moment.
- Documented Results: You receive a written report covering every change and every verification test.
- Remote and Onsite Support: We serve clients across the UK, Europe, Middle East, Africa, and North America.
Book Your JLR Reverse Traffic Detection Service
Ready to reverse with confidence in every car park? Contact our technical team with your VIN, and we will confirm compatibility, required components, pricing, and scheduling.
Email: info@lr-retrofit.com
Service available: Remote (you connect the VCI) or onsite (our technician attends)
Typical duration: 45–75 minutes for activation, 3–5 hours for a full retrofit with sensor and mirror installation
