OEM-grade seat massage retrofit for Land Rover and Jaguar. Add pneumatic lumbar massage with multiple intensity modes and factory-style switch integration.
Product Overview

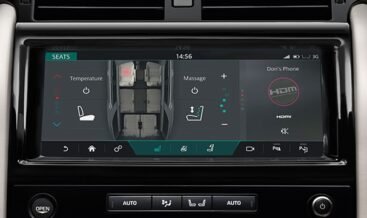

LR Retrofit delivers a complete seat massage retrofit for Land Rover and Jaguar vehicles. This upgrade integrates pneumatic massage bladders into the seat backrest and lumbar area. You control the massage through factory-style switches or the touchscreen climate menu. The system operates quietly and transforms long journeys into a more relaxing experience.
We use OEM-grade air bladders and a compact compressor module. The components fit invisibly under the original seat covers. The wiring connects directly to the vehicle’s seat electrical system. No aftermarket control panels remain visible. The result is a factory appearance and a genuine comfort upgrade.
Key Features
- Pneumatic massage system for driver and front passenger seats
- Five massage programmes: wave, pulse, lumbar, upper back, full back
- Three intensity levels adjust from gentle to strong
- Automatic shut-off after 20 minutes for safety
- Factory-style seat-side switch or touchscreen integration
- Whisper-quiet compressor with vibration isolation
- Plug-and-play wiring with vehicle-specific connectors
- No permanent modification to seat covers or foam
The system uses individual air chambers that inflate and deflate in sequence. You feel a smooth rolling motion across the back. The massage function helps reduce muscle fatigue during long drives.
Performance Benefits
The seat massage retrofit enhances driver and passenger comfort. You activate the massage with one press and choose the programme that suits your needs. The three intensity levels provide a customised experience. You notice reduced back stiffness after extended periods behind the wheel. The automatic shut-off prevents unnecessary battery drain.
Technical Specifications
| Massage type | Pneumatic air bladder system |
|---|---|
| Bladders per seat | 8 air chambers |
| Programmes | Wave, pulse, lumbar, upper back, full back |
| Intensity levels | 3 selectable |
| Compressor type | Brushless 12V DC, low noise |
| Operating voltage | 12V DC |
| Auto shut-off | 20 minutes |
| Integration | JLR seat CAN bus where supported |
| Connector type | OEM-compatible 8-pin |
Compatibility
- Land Rover Range Rover (L405, L460)
- Land Rover Range Rover Sport (L494, L461)
- Land Rover Discovery 5 (L462)
- Land Rover Defender (L663)
- Land Rover Range Rover Velar (L560)
- Jaguar F-Pace (X761)
- Jaguar XF (X260)
Vehicles must have standard front seats with removable covers. LR Retrofit confirms exact compatibility from your VIN before dispatch. Models with memory seats or ventilated seats may require additional coding, which we include in the kit.
Installation and Coding Support
We recommend professional installation. LR Retrofit supplies the complete hardware kit with air bladders, compressor, wiring looms, and switch panel. Our technical team provides remote coding support through JLR diagnostic tools. You update the Car Configuration File to activate the seat massage function. This enables touchscreen control where available.
The installation follows the factory method. You place the air bladders between the seat foam and the cover. The compressor mounts under the seat frame. The wiring routes along the original seat harness. All connectors use factory pin-outs. No cutting or splicing of the vehicle harness is necessary.
Technical Note
The seat massage system uses a dedicated control module that communicates over the JLR seat CAN bus where supported. The module reads the switch inputs and drives the pneumatic valves. The compressor runs only during active massage cycles. LR Retrofit supplies the correct control module parameters for your model. The system operates independently of the seat heating and ventilation functions.
Package Contents
- Two pneumatic massage bladder sets (driver and passenger)
- Control module with pre-loaded firmware
- Seat-side switch panel or touchscreen activation coding
- Vehicle-specific wiring loom set
- Installation and coding manual
Why Choose LR Retrofit
LR Retrofit focuses exclusively on JLR electrical and comfort upgrades. Each kit receives final inspection before dispatch. We use only OEM-grade components. A 24-month warranty covers all parts. Our support team assists with coding, installation, and troubleshooting from start to finish.
Order and Delivery
Order the seat massage retrofit today. We dispatch from stock within one business day. Worldwide shipping includes full tracking. Contact our team for a VIN-specific compatibility check before purchase.
