OEM 11.4 Rear Seat Entertainment Retrofit: Pivi Pro Integration and Display Architecture

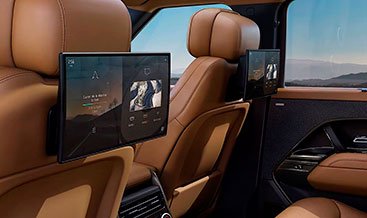

Elevate the rear cabin experience of your Jaguar Land Rover vehicle with a factory-grade 11.4 Rear Seat Entertainment retrofit. This comprehensive OEM upgrade integrates dual 11.4-inch high-definition displays directly into the front seat backrests, fully synchronized with the vehicle's Pivi Pro infotainment architecture. Engineered to exact factory specifications, this system provides rear passengers with independent multimedia control, HDMI input routing, and seamless Bluetooth audio synchronization without compromising the structural integrity of the seating assemblies.
Display Hardware Architecture and Optical Specifications
The core of the 11.4 Rear Seat Entertainment system relies on dual automotive-grade IPS LCD panels, engineered to withstand extreme cabin thermal cycling and direct UV exposure. Each display features a native resolution of $1920 \times 1080$ pixels. The pixel density, critical for rendering high-fidelity text and vector graphics, is calculated using the diagonal pixel density equation:
$$PPI = \frac{\sqrt{w_p^2 + h_p^2}}{d_i}$$
where $w_p$ represents the horizontal pixel count, $h_p$ the vertical pixel count, and $d_i$ the diagonal measurement in inches. For this specific hardware, the calculation yields:
$$PPI = \frac{\sqrt{1920^2 + 1080^2}}{11.4} \approx 193.2 \text{ PPI}$$
This high pixel density, combined with an anti-glare optical bonding layer, ensures optimal visibility. The display luminance $L$ is dynamically managed by the Ambient_Light_Sensor (ALS), scaling backlight intensity from $10 \text{ cd/m}^2$ for night driving up to $600 \text{ cd/m}^2$ to combat direct sunlight ingress.
Pivi Pro Network Topology and Data Routing
Integrating the 11.4 Rear Seat Entertainment retrofit requires precise synchronization with the vehicle's primary infotainment network. Unlike legacy systems that relied on LVDS cabling, the modern Pivi Pro architecture transmits high-bandwidth video data via Automotive Ethernet (100BASE-T1). The Infotainment_Master_Controller (IMC) acts as the central hub, routing decoded video streams to the left and right Rear_Display_Controllers (RDC).
Control telemetry, including touchscreen inputs, brightness adjustments, and volume commands, is transmitted back to the IMC via a localized LIN bus. This separation of high-speed video data and low-speed control signals ensures zero latency in touch response and prevents packet collision on the primary CAN FD network. Furthermore, the system utilizes galvanic isolation in the power delivery circuit to prevent ground loop interference from affecting the vehicle's premium audio amplifiers.
Software Calibration and As-Built Configuration
Physical installation of the display housings and wiring harnesses is only the first phase of the retrofit. The vehicle's electronic architecture must be formally updated to recognize the new hardware nodes and authorize the corresponding infotainment menus.
Advanced Pathfinder Diagnostic and IMC Configuration Procedures
- Connect the JLR Pathfinder diagnostic suite to the vehicle OBD-II port and initiate a complete network topology scan to verify communication with the newly installed
Rear_Display_Controllernodes. - Navigate to the Vehicle Configuration File (VCF) and As-Built data menus. Modify the Rear Seat Entertainment parameter from “Not Fitted” to “Dual 11.4-inch Displays”, writing the updated configuration block to the IMC and
Body_Control_Module(BCM). - Execute the Infotainment Master Controller software update routine to ensure the latest Pivi Pro build, which contains the necessary RSE graphical user interface assets and HDMI routing protocols, is flashed to the module.
- Perform a Display Functional Test via the diagnostic tool to verify touch digitizer calibration, audio channel routing, and HDMI input handshake protocols, followed by clearing all secondary network fault codes.
RSE Procurement and Professional Integration Services
LR-Retrofit specializes in comprehensive infotainment upgrades, supplying fully validated, OEM-specification 11.4 Rear Seat Entertainment hardware alongside professional coding services for all compatible Range Rover, Range Rover Sport, and Defender models. Our engineered solutions guarantee seamless Pivi Pro integration without triggering secondary network fault codes or causing parasitic draws on the vehicle's electrical system during sleep states. To procure a complete dual-screen RSE assembly, or to schedule a professional installation, harness routing, and IMC coding at our facility, add this retrofit package to your cart or contact our technical integration team for vehicle-specific VIN validation.
