Autonomous Emergency Braking (AEB) — OEM Retrofit & Activation for Jaguar and Land Rover Vehicles

Autonomous Emergency Braking (AEB) delivers your Jaguar or Land Rover vehicle’s most advanced forward-collision mitigation capability. This OEM ADAS function combines forward-facing camera data with long-range radar input to detect vehicles and pedestrians ahead, then applies staged braking intervention when the system identifies an imminent collision risk. We deliver this retrofit as a software-only activation or a complete hardware-plus-coding installation, depending on your vehicle’s existing ADAS sensor architecture and CCF trim-level restrictions.

How Autonomous Emergency Braking Works on JLR Platforms

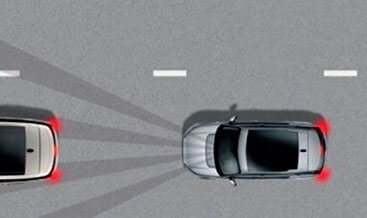

JLR engineers built AEB as an integrated function within the vehicle’s forward-monitoring ADAS network. The Integrated Forward Camera (IFC) mounts at the top of the windscreen and identifies vehicles, pedestrians, and lane geometry. The forward long-range radar sensor mounts behind the front bumper and measures precise distance, relative speed, and closing rate across multiple targets simultaneously. The ADAS-ECU fuses both data streams to build a continuous threat assessment of the road ahead.

When the ADAS-ECU calculates that a collision will occur without intervention, it executes a three-stage response sequence. First, it pre-fills the brake system and delivers a forward-collision audible and visual warning through the instrument cluster. Second, it applies partial braking to reduce vehicle speed and close the closing-rate gap. Third, it commands full braking pressure through the ABS and Dynamic Stability Control (DSC) module to mitigate or avoid impact. The system operates at speeds between approximately 5 km/h and 80 km/h for vehicle detection, with pedestrian detection active between approximately 5 km/h and 60 km/h. Every braking-threshold value, target-classification parameter, and speed-activation limit retains original OEM factory-calibration settings.

System Components and Technical Specifications

The complete Autonomous Emergency Braking retrofit includes the following OEM-grade components:

• Integrated Forward Camera (IFC): A genuine JLR windscreen-mounted mono camera that provides vehicle classification, pedestrian detection, and lane-geometry data to the ADAS-ECU.
• Forward Long-Range Radar Sensor: A genuine JLR 77 GHz radar unit with up to 200 metres of detection range. The sensor mounts behind the front grille in the factory-designated position.
• ADAS-ECU Integration: This module fuses camera and radar data, evaluates collision probability, and issues braking requests across the vehicle CAN and FlexRay networks.
• ABS and DSC Brake Actuation: The ABS and Dynamic Stability Control modules execute the pre-fill, partial-braking, and full-braking pressure commands that AEB demands.
• Instrument Cluster and Warning Interfaces: The IPC delivers forward-collision warnings, while the audio system provides audible driver alerts.

Vehicle Compatibility

Our Autonomous Emergency Braking retrofit supports all DOiP-capable JLR platforms carrying compatible forward camera and radar hardware or factory provisions for sensor installation. Compatible models include:

• Defender (L663, 2020–2026)
• Range Rover (L405, L460, 2013–2026)
• Range Rover Sport (L494, L461, 2014–2026)
• Discovery 5 (L462, 2017–2026)
• Discovery Sport (L550, 2015–2026)
• Evoque (L538, L551, 2012–2026)
• Velar (L560, 2017–2026)
• Jaguar F-PACE (X761, 2016–2026)
• Jaguar XF (X260, 2016–2024)
• Jaguar XE (X760, 2015–2024)
• Jaguar I-PACE (2018–2025)
• Jaguar E-PACE (2018–2024)

Many mid-to-high-specification vehicles arrive from the factory with the forward camera and radar hardware already fitted, yet factory CCF trim-level restrictions disable the complete AEB feature set. Our dealer-level Pathfinder DOIP programming removes these software barriers and activates the full forward-collision mitigation logic.

The Retrofit Process

We perform every Autonomous Emergency Braking retrofit using certified JLR Pathfinder DOIP programming. The process follows four defined stages:

1. Pre-Scan Diagnostics: We verify the health and compatibility of your vehicle’s forward camera, radar sensor, ABS module, and DSC module. This step confirms whether your vehicle requires software-only activation or a complete hardware-plus-coding installation.
2. CCF Configuration Updates: We modify validated CCF build-file flags within the ADAS-ECU, ABS module, IPC, and gateway (GWM) to unlock dormant AEB logic. This approach preserves all factory braking thresholds, target-classification values, and diagnostic-logging routines.
3. ADAS Sensor Calibration: Where sensor installation is required, our technicians mount the camera and radar units in factory-specified positions and perform static and dynamic calibration using JLR-approved diagnostic equipment. This calibration delivers the sub-millimetre alignment accuracy that AEB requires.
4. Post-Activation Validation: Our JLR-certified technicians verify radar and camera response, warning behaviour, and brake pre-fill operation on-road. We confirm zero fault codes and full feature usability before completing the service.

Key Benefits of the Autonomous Emergency Braking Retrofit

• Forward-Collision Mitigation: AEB detects vehicles and pedestrians ahead and applies staged braking intervention to reduce impact severity or avoid a collision entirely.
• Dormant Hardware Unlock: Many JLR vehicles carry factory-fitted forward camera and radar electronics locked behind CCF software restrictions. Our activation unlocks this latent safety hardware without physical modifications.
• Full OEM Integration: The retrofit uses genuine JLR components and factory programming protocols. It maintains complete vehicle system integrity and triggers no warning lights or ADAS DTC faults.
• Complete ADAS Foundation: AEB activation establishes the sensor and coding foundation that supports Adaptive Cruise Control, Traffic Jam Assist, and Lane Keep Assist retrofits.
• Permanent Feature Stability: Autonomous Emergency Braking functionality persists through battery resets, system scans, and official JLR software updates.

Ordering and Installation

We deliver the Autonomous Emergency Braking retrofit as an on-site installation or through our nationwide mobile service. Each package includes full pre-programming diagnostic scanning, factory CCF configuration updates, ADAS sensor calibration where required, and post-code system validation. Our JLR-certified technicians complete every installation using OEM procedures and OEM components.

Contact our team today to confirm your vehicle’s compatibility and schedule your Autonomous Emergency Braking retrofit. We will verify your vehicle’s camera and radar hardware configuration and recommend the correct activation path for your model.
