Lane Departure Warning (LDW) — OEM Retrofit & Activation for Jaguar and Land Rover Vehicles

Lane Departure Warning (LDW) strengthens your Jaguar or Land Rover vehicle’s forward-monitoring ADAS suite with camera-based lane-boundary detection. This OEM function employs the Integrated Forward Camera (IFC) to track lane markings continuously, then alerts you through haptic steering-wheel vibration, instrument-cluster warnings, and an audible chime whenever your vehicle drifts across a lane boundary without an active turn signal. We deliver this retrofit as a software-only activation or a complete hardware-plus-coding installation, depending on your vehicle’s existing camera architecture and CCF trim-level restrictions.

How Lane Departure Warning Works on JLR Platforms

JLR engineers integrated LDW within the vehicle’s forward-camera ADAS network. The Integrated Forward Camera (IFC) mounts at the top of the windscreen behind the rear-view mirror housing and captures road-surface imagery at up to 30 frames per second. The camera identifies solid and dashed lane markings, evaluates lane width, and calculates your vehicle’s lateral position relative to both boundary lines.

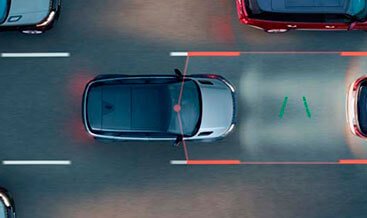

LDW activates automatically once vehicle speed exceeds approximately 60 km/h (37 mph) on most JLR platforms. The system monitors the turn-signal stalk input continuously, so it suppresses warnings whenever you indicate an intentional lane change. When the IFC detects an unintended lane crossing, it triggers a three-stage alert sequence. First, the Electric Power Steering (EPS) motor generates a haptic steering-wheel vibration. Second, the instrument cluster displays an amber lane-departure warning graphic. Third, the audio system emits a directional chime. The system deactivates below approximately 55 km/h (34 mph) and resumes automatically once you return to highway speeds. Every detection threshold, lane-width parameter, and alert-timing value retains original OEM factory-calibration settings.

System Components and Technical Specifications

The complete Lane Departure Warning retrofit includes the following OEM-grade components:

• Integrated Forward Camera (IFC): A genuine JLR windscreen-mounted mono camera that provides lane-marking classification, lane-width measurement, and lateral-position data to the ADAS-ECU. The camera delivers a horizontal field of view of approximately 50 degrees and detects markings at ranges between 10 and 60 metres ahead.
• ADAS-ECU Integration: This module processes camera imagery, evaluates lane-crossing probability, and issues alert requests across the vehicle CAN and FlexRay networks.
• Electric Power Steering (EPS) Haptic Module: The EPS motor generates the steering-wheel vibration that delivers the primary tactile warning to the driver.
• Instrument Cluster and Warning Interfaces: The IPC displays lane-departure graphics, while the audio system provides the directional audible chime.
• Turn-Signal Stalk Integration: The system reads stalk position to suppress warnings during intentional lane changes and to determine the correct directional alert.

Vehicle Compatibility

Our Lane Departure Warning retrofit supports all DOiP-capable JLR platforms carrying compatible forward camera hardware or factory provisions for camera installation. Compatible models include:

• Defender (L663, 2020–2026)
• Range Rover (L405, L460, 2013–2026)
• Range Rover Sport (L494, L461, 2014–2026)
• Discovery 5 (L462, 2017–2026)
• Discovery Sport (L550, 2015–2026)
• Evoque (L538, L551, 2012–2026)
• Velar (L560, 2017–2026)
• Jaguar F-PACE (X761, 2016–2026)
• Jaguar XF (X260, 2016–2024)
• Jaguar XE (X760, 2015–2024)
• Jaguar I-PACE (2018–2025)
• Jaguar E-PACE (2018–2024)

Many mid-to-high-specification vehicles arrive from the factory with the forward camera already fitted, yet factory CCF trim-level restrictions disable the complete LDW feature set. Our dealer-level Pathfinder DOIP programming removes these software barriers and activates the full lane-departure monitoring logic.

The Retrofit Process

We perform every Lane Departure Warning retrofit using certified JLR Pathfinder DOIP programming. The process follows four defined stages:

1. Pre-Scan Diagnostics: We verify the health and compatibility of your vehicle’s forward camera, EPS module, and instrument cluster. This step confirms whether your vehicle requires software-only activation or a complete hardware-plus-coding installation.
2. CCF Configuration Updates: We modify validated CCF build-file flags within the IFC, ADAS-ECU, EPS, IPC, and gateway (GWM) to unlock dormant LDW logic. This approach preserves all factory detection thresholds, lane-width parameters, and diagnostic-logging routines.
3. Camera Calibration: Where camera installation is required, our technicians mount the IFC in the factory-specified windscreen position and perform static and dynamic calibration using JLR-approved diagnostic equipment. This calibration delivers the sub-millimetre alignment accuracy that lane-marking detection requires.
4. Post-Activation Validation: Our JLR-certified technicians verify camera response, haptic vibration output, cluster warning graphics, and audible chime behaviour on-road. We confirm zero fault codes and full feature usability before completing the service.

Key Benefits of the Lane Departure Warning Retrofit

• Early Drift Detection: LDW identifies unintended lane crossings before they escalate, giving you valuable time to correct your steering and maintain safe lane discipline.
• Haptic Driver Feedback: The steering-wheel vibration delivers an immediate tactile warning that works effectively in low-light conditions and at times when visual alerts may go unnoticed.
• Dormant Hardware Unlock: Many JLR vehicles carry factory-fitted forward camera electronics locked behind CCF software restrictions. Our activation unlocks this latent safety hardware without physical modifications.
• Full OEM Integration: The retrofit uses genuine JLR components and factory programming protocols. It maintains complete vehicle system integrity and triggers no warning lights or ADAS DTC faults.
• Foundation for Lane Keep Assist: LDW activation establishes the camera calibration and coding foundation that supports a subsequent Lane Keep Assist retrofit on the same vehicle.
• Permanent Feature Stability: Lane Departure Warning functionality persists through battery resets, system scans, and official JLR software updates.

Ordering and Installation

We deliver the Lane Departure Warning retrofit as an on-site installation or through our nationwide mobile service. Each package includes full pre-programming diagnostic scanning, factory CCF configuration updates, camera calibration where required, and post-code system validation. Our JLR-certified technicians complete every installation using OEM procedures and OEM components.

Contact our team today to confirm your vehicle’s compatibility and schedule your Lane Departure Warning retrofit. We will verify your vehicle’s camera hardware configuration and recommend the correct activation path for your model.
