Blind Spot Assist (Blind Spot System) — OEM Retrofit & Activation for Jaguar and Land Rover Vehicles

Blind Spot Assist extends your Jaguar or Land Rover vehicle’s driver-assistance suite with radar-based monitoring of the rear-quarter blind zones. This OEM ADAS function employs a pair of side-facing 24 GHz radar sensors mounted behind the rear bumper fascia. These sensors detect vehicles occupying adjacent lanes and deliver real-time visual warnings through the exterior mirror warning LEDs. We deliver this retrofit as a software-only activation or a complete hardware-plus-coding installation, depending on your vehicle’s existing radar architecture and CCF trim-level restrictions.

How Blind Spot Assist Works on JLR Platforms

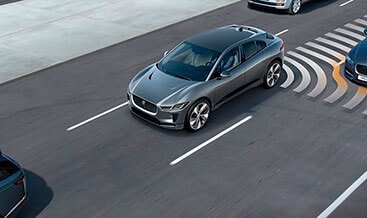

JLR engineers designed the Blind Spot System as a supplementary function integrated within the vehicle’s existing CAN-bus architecture. The Blind Spot Monitoring Control Module (BMCM) receives radar data from both rear-quarter sensors and evaluates relative vehicle speed, distance, and trajectory. When a vehicle enters the blind-spot zone, the corresponding exterior-mirror amber LED illuminates steadily. If you activate your turn signal toward an occupied lane, the mirror LED flashes rapidly to deliver enhanced lane-change risk alerting.

The system activates automatically when vehicle speed exceeds approximately 15 km/h (9 mph) and deactivates below approximately 5 km/h (3 mph). The BMCM radar units provide a detection range of up to 70 metres behind the vehicle and approximately 2.5 metres from each side, covering the full blind zone and fast-approaching vehicles. The modules communicate data at a refresh rate of 20 cycles per second, ensuring real-time alert accuracy. Every radar detection threshold, warning-LED behaviour, and speed-activation value retains original OEM factory-calibration parameters.

System Components and Technical Specifications

The complete Blind Spot Assist retrofit includes the following OEM-grade components:

• Dual 24 GHz BMCM Radar Sensors: Genuine JLR radar modules mount behind the rear bumper fascia using factory-specified bracketry. Each sensor scans adjacent traffic lanes and provides object discrimination with a detection range of 3.5 to 70 metres.
• Exterior Mirror Warning LEDs: Each wing mirror receives a dedicated amber LED indicator that illuminates when the system detects an occupied blind zone. The alert brightness adjusts automatically to ambient light conditions.
• Blind Spot Monitoring Control Module (BMCM): This module processes radar data, evaluates threat levels, and communicates warning requests to the instrument cluster and mirror LEDs through the CAN comfort bus.
• Wiring Harness Adaptations: Where vehicles require sensor installation, we supply OEM-grade wiring harnesses with factory-specification connectors and routing paths.

Vehicle Compatibility

Our Blind Spot Assist retrofit supports all DOiP-capable JLR platforms carrying compatible BMCM radar hardware or factory provisions for sensor installation. Compatible models include:

• Defender (L663, 2020–2026)
• Range Rover (L405, L460, 2013–2026)
• Range Rover Sport (L494, L461, 2014–2026)
• Discovery 5 (L462, 2017–2026)
• Discovery Sport (L550, 2015–2026)
• Evoque (L538, L551, 2012–2026)
• Velar (L560, 2017–2026)
• Jaguar F-PACE (X761, 2016–2026)
• Jaguar XF (X260, 2016–2024)
• Jaguar XE (X760, 2015–2024)
• Jaguar I-PACE (2018–2025)
• Jaguar E-PACE (2018–2024)

Many mid-to-high-specification vehicles arrive from the factory with BMCM radar modules already fitted behind the rear bumper, yet factory CCF trim-level restrictions disable the complete Blind Spot System feature set. Our dealer-level Pathfinder DOIP programming removes these software barriers and activates the complete radar scanning, mirror warning illumination, and corrective assist logic.

The Retrofit Process

We perform every Blind Spot Assist retrofit using certified JLR Pathfinder DOIP programming. The process follows four defined stages:

1. Pre-Scan Diagnostics: We verify the health and compatibility of your vehicle’s existing BMCM radar hardware, mirror indicator provisions, and CAN-bus communication channels. This step confirms whether your vehicle requires software-only activation or a complete hardware-plus-coding installation.
2. CCF Configuration Updates: We modify validated CCF build-file flags within the BMCM, instrument cluster (IPC), Body Control Module (BCM), and gateway (GWM) to unlock dormant Blind Spot System logic. This approach preserves all factory radar-filtering thresholds, speed-activation values, and diagnostic-logging routines.
3. Radar Sensor Calibration: Where sensor installation is required, our technicians mount both radar modules in the factory-specified positions and perform angle calibration using JLR-approved diagnostic equipment. This calibration ensures precise lane-boundary detection and reliable target discrimination.
4. Post-Activation Validation: Our JLR-certified technicians test radar response, mirror LED behaviour, and lane-change alert logic on-road. We confirm zero fault codes and full feature usability before completing the service.

Key Benefits of the Blind Spot Assist Retrofit

• Enhanced Lane-Change Safety: The system detects vehicles occupying or rapidly approaching blind-spot zones and delivers immediate visual warnings through the exterior mirror LEDs, supporting safer motorway and urban driving.
• Dormant Hardware Unlock: Many JLR vehicles carry factory-fitted BMCM radar electronics locked behind CCF software restrictions. Our activation unlocks this latent safety hardware without physical modifications.
• Full OEM Integration: The retrofit uses genuine JLR components and factory programming protocols. It maintains complete vehicle system integrity and triggers no warning lights or ADAS DTC faults.
• Native Alert Logic: The system restores official mirror-LED warning behaviour, including steady illumination for occupied zones and rapid flashing when you signal toward a detected hazard.
• Permanent Feature Stability: Blind Spot Assist functionality persists through battery resets, system scans, and official JLR software updates.

Ordering and Installation

We deliver the Blind Spot Assist retrofit as an on-site installation or through our nationwide mobile service. Each package includes full pre-programming diagnostic scanning, factory CCF configuration updates, ADAS sensor calibration where required, and post-code system validation. Our JLR-certified technicians complete every installation using OEM procedures and OEM components.

Contact our team today to confirm your vehicle’s compatibility and schedule your Blind Spot Assist retrofit. We will verify your vehicle’s radar hardware configuration and recommend the correct activation path for your model.
