Traffic Jam Assist Function — OEM Retrofit & Activation for Jaguar and Land Rover Vehicles

Traffic Jam Assist (TJA) extends your Jaguar or Land Rover vehicle’s Adaptive Cruise Control with Stop & Go capability into low-speed congested-traffic scenarios. This Level 2 ADAS function combines forward radar data, windscreen-mounted camera input, and Electric Power Steering (EPS) intervention to centre your vehicle within lane markings during heavy traffic. We deliver this retrofit as a software-only activation or a complete hardware-plus-coding installation, depending on your vehicle’s existing ADAS architecture.

How Traffic Jam Assist Works on JLR Platforms

JLR engineers built Traffic Jam Assist as a supplementary function layered on top of Adaptive Cruise Control with Stop & Go. The system activates automatically when you engage ACC Stop & Go under low-speed heavy-traffic conditions. The forward long-range radar sensor continuously monitors preceding traffic, while the windscreen-mounted mono camera detects lane markings. The ADAS-ECU then executes gentle steering-wheel interventions to keep your vehicle centred within the detected lane boundaries.

Traffic Jam Assist operates at speeds below 37 mph (60 km/h) in congested conditions. The system manages full stop-and-resume behaviour in queues, subject to driver hands-on-steering-wheel requirements. Every steering-intervention limit, speed threshold, and fault-detection routine retains original OEM factory-calibration values. The instrument cluster displays clear TJA-status feedback so you always know when the system is active.

System Components and Technical Specifications

The complete Traffic Jam Assist retrofit includes the following OEM-grade components:

• Forward Long-Range Radar Sensor: A genuine JLR 77 GHz radar unit with 150-metre detection capability. The sensor mounts behind the front grille in the factory-designated position and tracks multiple targets simultaneously with sophisticated object discrimination algorithms.
• Windscreen-Mounted Mono Camera: This camera detects lane markings and provides the ADAS-ECU with the visual data required for lane-centring steering interventions.
• Electric Power Steering (EPS) Integration: The EPS module receives ADAS-ECU commands and delivers the gentle steering inputs that centre your vehicle within lane boundaries.
• Vehicle Integration Module: A dedicated control module processes radar and camera data, then communicates with engine management, transmission control, and braking systems through the vehicle CAN bus.

Vehicle Compatibility

Our Traffic Jam Assist retrofit supports all DOiP-capable JLR platforms that carry compatible ADAS radar, forward camera, and electric power-steering hardware. Compatible models include:

• Defender (L663, 2020–2026)
• Range Rover (L405, L460, 2013–2026)
• Range Rover Sport (L494, L461, 2014–2026)
• Discovery 5 (L462, 2017–2026)
• Discovery Sport (2015–2026)
• Evoque (L538, L551, 2012–2026)
• Velar (2017–2026)
• Jaguar F-PACE (2016–2026)
• Jaguar XF (X260, 2016–2024)
• Jaguar XE (X760, 2015–2024)
• Jaguar I-PACE (2018–2025)
• Jaguar E-PACE (2018–2024)

Many of these vehicles arrive from the factory with the necessary radar, camera, and EPS hardware already fitted, yet factory CCF trim-level restrictions lock the TJA feature behind software barriers. Our dealer-level Pathfinder DOIP programming removes these restrictions and activates the complete TJA logic.

The Retrofit Process

We perform every Traffic Jam Assist retrofit using certified JLR Pathfinder DOIP programming. The process follows four defined stages:

1. Pre-Scan Diagnostics: We verify the health and compatibility of your vehicle’s existing radar, camera, and EPS hardware. This step confirms whether your vehicle requires software-only activation or a complete hardware-plus-coding installation.
2. CCF Configuration Updates: We modify approved CCF build-file flags to unlock the dormant TJA logic. This approach preserves all factory safety thresholds, sensor calibration values, and DTC fault protocols.
3. ADAS Sensor Calibration: We align the radar beam pattern and teach the module its precise mounting angle using JLR-approved diagnostic equipment. This calibration matches the sub-millimetre accuracy required for safe, reliable operation at all speeds.
4. Post-Activation Validation: Our JLR-certified technicians test radar response, speed adaptation, and traffic-jam steering assist on-road. We confirm zero fault codes and full feature usability before completing the service.

Key Benefits of the Traffic Jam Assist Retrofit

• Reduced Driver Workload: TJA delivers subtle steering assistance and centres the vehicle during low-speed congestion, significantly reducing fatigue on long commutes.
• Full OEM Integration: The retrofit uses genuine JLR components and factory programming protocols. It maintains complete vehicle system integrity and triggers no warning lights or system errors.
• Seamless Stop-Go Integration: Traffic Jam Assist works alongside your existing ACC Stop & Go system to provide full queue-following capability from standstill to motorway speeds.
• Warranty-Safe and Reversible: The CCF configuration change preserves official vehicle service and warranty validity. No third-party modified files enter your vehicle.

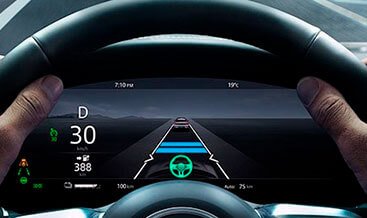

• Native Instrument-Cluster Feedback: The system restores official TJA status icons and driver-notification pop-ups within your vehicle’s driver-display unit.

Ordering and Installation

We deliver the Traffic Jam Assist retrofit as an on-site installation or through our nationwide mobile service. Each package includes full pre-programming diagnostic scanning, factory CCF configuration updates, ADAS sensor calibration, and post-code system validation. Our JLR-certified technicians complete every installation using OEM procedures and OEM components.

Contact our team today to confirm your vehicle’s compatibility and schedule your Traffic Jam Assist retrofit. We will verify your vehicle’s ADAS hardware configuration and recommend the correct activation path for your model.
