Uncompromised Situational Awareness

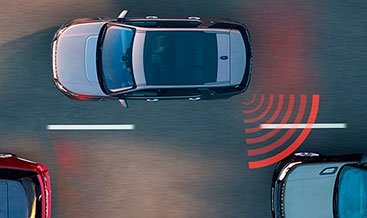

LR-Retrofit delivers the complete installation of the Blind Spot Monitoring System, equipping your Land Rover or Range Rover with an exact factory-grade safety net. You gain constant, intelligent surveillance of your vehicle’s rear quarter blind zones. This system employs genuine 24 GHz short-range radar sensors concealed behind the rear bumper fascia. Each sensor actively scans alongside and behind your vehicle, instantly detecting approaching traffic that might otherwise hide in your mirror’s blind area. The moment a vehicle enters the monitored zone, a subtle amber warning icon illuminates in the corresponding door mirror glass—clear, unobtrusive, and precisely where your eyes naturally scan.

Our integration goes beyond warning lights. On models supporting Blind Spot Assist, we unlock the full corrective potential. Should you begin indicating towards an occupied lane, the system provides a tactile steering wheel vibration and a rapid mirror icon flash, actively prompting you to check before changing course. We never rely on generic third-party sensors or add-on warning pods. Our process installs genuine JLR radars, replaces the mirror glass with OE heated, auto-dimming and indicator-integrated units, and meticulously configures the vehicle’s Central Car Configuration file to achieve a factory-original Blind Spot Monitoring presentation across the instrument cluster and infotainment display.

Precision Hardware & Software Integration

We reject surface-level alert systems. Our upgrade mirrors the exact engineering standard specified by JLR for the optional Driving Pack. Every component arrives VIN-matched to your vehicle’s build specification. The installation process we follow reproduces the factory routing, mounting, and connection protocols down to the last clip and terminal.

Key Components Installed

• Genuine Rear Radar Sensors: Two OEM master and slave 24 GHz radar modules, mounted onto validated brackets behind the rear bumper cover, aligned precisely to the factory target angle for maximum detection coverage.
• Blind Spot Mirror Glass with Integrated LED: Aspheric or flat glass, replaced in both door mirrors, featuring a bonded amber warning icon. These units maintain your existing heating, auto-dimming, and power-fold functions.
• Vehicle-Specific Wiring Harness Overlay: A fused, twisted-pair CAN bus circuit linking the radars directly to the Door Modules and Body Control Gateway, employing JLR-specification connectors and protective sleeving.
• Steering Wheel Vibration Motor (Assist models): For vehicles capable of Blind Spot Assist, we integrate the haptic feedback actuator into the steering wheel trim, creating the factory warning pulse.

CCF Editing & Network Configuration

Hardware remains dormant until we reprogramme the vehicle’s intelligence. Our JLR-approved diagnostic platform performs a comprehensive Central Car Configuration update. We enable the Blind Spot Monitoring feature toggle within the Driver Assistance menu, activate the radar inputs in the Gateway Module, and configure the door module LIN signals to drive the mirror LEDs. The result provides graduated visual alerts, an audible chime on detection during indicator activation, and—when appropriate—steering wheel vibration. Every line of code we write ensures the system passes full end-of-line diagnostics with zero fault codes, preserving the integrity of your vehicle’s CAN network.

Confidence in Every Lane Change

This retrofit eliminates the psychological load of trying to judge closing speeds in door mirrors. The radar system monitors vehicles up to 70 metres behind you and across the adjacent lanes, functioning reliably at highway speeds and in dense urban traffic. You reduce the risk of a side-swipe collision significantly by receiving a prompt that does not rely on your own imperfect judgment. The technology augments your awareness without overwhelming you, giving you smooth, progressive alerts that respect your attention. Because we use OEM parts, the system automatically suppresses false alarms from stationary objects such as guardrails and parked cars, thanks to the factory signal filtering algorithms running in the radar firmware.

Our Workshop Methodology

You experience a clean, respectful, and documented retrofit journey. We remove the rear bumper skin with painstaking care, protecting paint and sensor connectors. The radar brackets bolt into pre-existing location holes in the body structure—no drilling, no improvisation. After wiring, we perform a static sensor alignment verification using target calibration boards to guarantee detection zone accuracy. The final road test confirms real-world activation, with the mirror icon responding instantly to vehicles overtaking from behind. A complete post-installation diagnostic report accompanies your vehicle, detailing the activated CCF values and system status.

Transaction & Booking

Reserve your installation slot today. We require a 50% deposit to secure the VIN-specific parts directly from JLR’s genuine parts division. Typical workshop time spans 4 to 6 hours, allowing same-day return of your significantly safer vehicle. We stand behind our work with a 12-month comprehensive warranty covering both parts and installation. Contact our technical team now to confirm compatibility on your Discovery, Range Rover Sport, Velar, or full-size Range Rover.
