Why Choose the ClearSight Interior Mirror Retrofit?

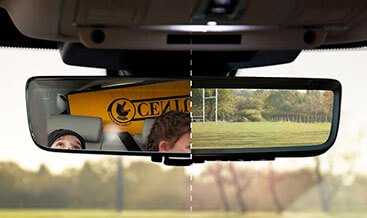

Land Rover’s ClearSight interior mirror transforms the traditional reflective glass into a high‑definition display fed by a roof‑mounted rear camera. When you load the boot up to the headliner, stack sports gear, or carry rear passengers, the standard mirror loses its view. The ClearSight retrofit solves that problem permanently. A flick of the tab switches between a real‑time video stream and a conventional reflective mirror—both fully homologated to JLR safety standards.
Our kit uses only genuine JLR components, including the mirror assembly, roof‑pod camera, wiring harness, and control module. We programme the module to your vehicle’s VIN and existing CAN‑bus architecture, mirroring the exact behaviour of a factory‑fitted ClearSight system. The installation integrates seamlessly with Surround Camera, reversing camera, and auto‑dimming functions already present in your vehicle.
JLR‑Grade Technical Details
- Camera: roof‑mounted, IP67‑rated wide‑angle unit with hydrophobic lens coating and automatic heater element.
- Display: 9.5‑inch frameless LCD mirror (1280 × 272 pixels), 60 Hz refresh, brightness‑adaptive backlight.
- Field of view: 50° horizontal, substantially wider than a glass mirror.
- Latency: less than 55 ms end‑to‑end, preserving real‑time situational awareness.
- Switching: bi‑stable toggle lever – driver switches between digital view and standard reflective mirror instantly.
- Vehicle integration: CAN‑bus connection to Central Junction Box and Gateway Module. The system reads ambient light, reverse gear, and vehicle speed to adjust brightness and overlay dynamic guidelines.
- Compatible models: Range Rover (L460), Range Rover Sport (L461), Defender (L663), Discovery (L462), Jaguar F‑Pace (X761).
Factory‑Matched Retrofit Process
Our certified technicians install the camera pod inside the existing roof‑mounted shark‑fin antenna housing or a dedicated casing, preserving the vehicle’s exterior silhouette. The wiring runs along the headlining and A‑pillar, following factory routing paths. Every connector uses JLR‑spec waterproof terminals.
After the physical installation, we update the vehicle’s Car Configuration File (CCF) with the official ClearSight enablement parameter. The Gateway Module then recognises the mirror as a factory option. No aftermarket converters or display‑splicing modules compromise the digital video stream. You maintain full diagnostic visibility, and future dealer software updates remain unaffected.
ClearSight in Daily Use
The active video feed delivers a crisp, colour‑accurate image even in low light. The hydrophobic lens sheds rainwater at speed, and the built‑in heater clears mist or frost within seconds of start‑up. When you tow a caravan or trailer, the system keeps the trailer tongue visible, aiding hitching and lane‑change safety. Unlike clip‑on aftermarket cameras, the ClearSight mirror matches the cabin’s premium materials and exact colour‑match bezels.
Because the mirror operates independently of the main infotainment display, you always see the rear view regardless of which app or navigation screen you select on the Pivi Pro touchscreen.
Kit Contents, Pricing, and Support
- Genuine ClearSight mirror assembly
- Roof‑pod camera with heating element
- Vehicle‑specific wiring harness and CAN‑bus interface loom
- Mounting brackets, seals, and fixings
- CCF programming and full system calibration
- 24‑month pan‑European warranty on parts and labour
Pricing starts at £1,495.00 including VAT, fitting, and programming. Mobile installation across the UK is available at no extra cost.
