What Is Wade Sensing and How Does It Protect Your Vehicle?

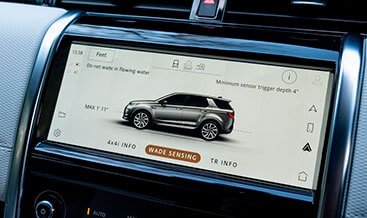

The genuine Wade Sensing system uses a pair of ultrasonic sensors, one integrated into each exterior door mirror. These sensors emit high‑frequency pulses that reflect off the water surface, then measure the return time. The control module converts the time‑of‑flight data into an instantaneous depth reading, accurate to within 5 millimetres. The Pivi Pro or InControl Touch Pro display shows the reading as a clear number, overlaid on the 4×4 information screen. A dynamic graphic also rises and falls with the water level, giving you intuitive real‑time awareness.
Land Rover engineered Wade Sensing for vehicles that regularly tackle flooded tracks, fords, or deep ruts. While a Defender or Discovery has a quoted maximum wading depth of up to 900 mm, that figure assumes a smooth, flat‑bottom crossing and a steady speed. In real off‑road conditions, submerged obstacles, undulating riverbeds, or bow waves can alter the true depth beneath the air intake. Wade Sensing provides the ground‑truth measurement you need to make safe, confident decisions.
JLR‑Grade Technical Breakdown
- Sensor type: dual ultrasonic transducers, 40 kHz operating frequency, mounted in the lower mirror housings.
- Processing module: dedicated Gateway‑interfaced ECU that connects via high‑speed CAN‑bus. The module filters out spray, rain, and splashes to prevent false readings.
- Update rate: depth value refreshes 10 times per second, ensuring immediate response to changing water levels.
- Accuracy: calibrated to ±5 mm in calm water; heave compensation uses vehicle pitch and roll data from the Inertial Measurement Unit (IMU) to correct for angled crossings.
- Operating range: from 150 mm to 1,200 mm; the display provides graduated warnings as you approach your model’s maximum wading depth.
- Integration: fully integrated with Terrain Response, the off‑road information cluster, and the vehicle’s Driver Assistance Module. No aftermarket overlays or separate screens required.
Factory‑Matched Retrofit Process
Our JLR‑certified technicians install the mirror‑mounted sensors without altering the vehicle’s external appearance. The retrofit kit includes the pre‑painted sensor pods that replace the existing lower mirror caps, along with the dedicated wiring looms that run through the door hinges and into the body control module. Every electrical connection uses the correct JLR‑spec waterproof connectors and twisted‑pair CAN wires.
After the physical fitment, we update the Car Configuration File (CCF) to enable the Wade Sensing feature. This process tells the vehicle’s Gateway Module and Body Control Module that the sensors are factory‑installed. The system then appears natively in the 4×4 information menu. The calibration routine verifies sensor alignment and ensures depth readings match a known reference point. No aftermarket tuner boxes or display‑splicing devices interfere with the vehicle’s digital architecture. Your vehicle retains full diagnostic capability, and any future dealer software updates will not overwrite the retrofit.
Confidence in Every Water Crossing
With Wade Sensing, you approach fords and floods with hard data, not guesswork. The display updates in real time, so you can adjust speed and line if the water deepens unexpectedly. The system also reduces the risk of water ingestion, hydraulic lock, or electrical component damage, all of which can occur if you misjudge depth by just a few centimetres. For expedition travellers, agricultural users, and recovery professionals, the retrofit turns a challenging wading task into a measured, controlled operation.
Unlike aftermarket depth‑gauge kits that rely on pressure sensors or float switches, the JLR ultrasonic system requires no hull modifications, no drilling below the waterline, and no external appendages that flotsam could strike. The sensors sit safely behind the mirror glass, shielded from ice, debris, and car‑wash brushes.
Kit Contents, Pricing, and Warranty
- Two genuine ultrasonic sensor pods (colour‑coded to your vehicle’s mirror caps)
- Vehicle‑specific wiring harnesses and door‑loom connectors
- Wade Sensing control module with mounting bracket
- CCF programming and full sensor calibration
- Fitting instructions and remote support
- 36‑month warranty on parts and workmanship
The retrofit kit starts at £995.00 including VAT, installation, and coding. We offer nationwide mobile fitting across the UK at no additional travel cost. Off‑road shakedown testing completes every installation, so your first real water crossing arrives with factory‑backed precision.
