How the ClearSight Mirror Works

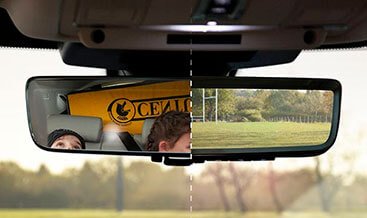

In its default mode, the mirror behaves just like any other electro‑chromic auto‑dimming interior mirror. When you flip the toggle underneath, the glass instantly becomes a high-resolution LCD screen that displays the live feed from the ClearSight camera. The camera, discreetly mounted in the roof shark‑fin pod, provides a 1.7‑megapixel image with a 50‑degree horizontal field of view. This view actually surpasses what a conventional mirror can show: there are no headrests, no rear pillars, and no passengers blocking the line of sight. At night, the system brightens the image automatically and switches to a superior monochrome mode to reduce glare, ensuring you always have full situational awareness.
Because the camera sits high on the roof, it resists road spray, rain, and snow far better than a reverse camera mounted near the number plate. A hydrophobic coating on the lens and a dedicated washer jet (depending on vehicle spec) keep the view clean. You simply never have to worry about a misted or dirty rear screen again.
Key Features
- Instant mirror-to-screen switching: Flick the tab underneath the mirror housing to alternate between the conventional reflective view and the high-definition video feed.
- Genuine Land Rover HD camera: The roof-mounted ClearSight camera delivers a 1700 x 400 pixel image, with automatic brightness adjustment and nighttime monochrome mode for low‑light clarity.
- Wide, unobstructed field of view: The 50‑degree lens captures more of the road behind than any traditional mirror, eliminating blind spots from rear pillars and headrests.
- OEM‑quality frameless mirror: The mirror assembly features a frameless design, auto‑dimming functionality, and the identical form factor to the factory ClearSight unit – no bulky add‑ons.
- Seamless integration with vehicle electrics: The system draws power from the cabin fuse box and communicates over the existing vehicle network. The video feed activates the moment the ignition is on, with zero delay.
- All‑weather reliability: The shark‑fin camera location keeps the lens clear of mud, and the unit includes a thermostat-controlled heater to prevent misting and icing in winter.
- Fully reversible: The retrofit uses plug‑and‑play wiring connectors and factory mounting positions. We leave no evidence of the installation and you can return the vehicle to stock at any time.
Technical Specifications
The ClearSight Interior Rear View Mirror retrofit kit contains the following precise Land Rover parts. Every component carries a manufacturer part number and meets the original design tolerances.
- Frameless ClearSight interior mirror assembly (auto‑dimming, with integrated LCD display and toggle switch).
- Roof‑mounted high‑definition camera module with metal‑oxide‑semiconductor sensor (field of view 50°, resolution 1700 h x 400 v).
- Complete vehicle‑specific wiring harness with OEM‑type connectors, running from the mirror down to the Body Control Module and the roof console.
- Shark‑fin camera pod and mounting bracket (if the existing fin does not include the camera cut‑out).
- Software enablement file (.VBF) to activate the ClearSight feature on the Central Touchscreen (where applicable) and the mirror controller.
- All necessary fuses, relays, and CAN bus integration modules.
- System power consumption: < 1.2 A at 12 V DC.
Compatibility
We can fit the ClearSight Interior Rear View Mirror to any Land Rover model that accepts a factory shark‑fin antenna pod. The retrofit is especially popular on these vehicles:
- Range Rover Evoque (L551, 2020 onwards – shares the same design as the first ClearSight-equipped model)
- Range Rover Velar (L560, 2021 model year onwards with optional technology pack)
- Range Rover Sport (L494, 2023 model year onwards; L461 with Pivi Pro)
- Range Rover (L460, 2022 onwards)
- Land Rover Defender (L663, 2020 onwards – requires the factory shark‑fin roof pod)
- Land Rover Discovery (L462, 2023 facelift models)
- Discovery Sport (L550, 2024 model year onwards)
If your vehicle already has the shark‑fin pod with a rear‑facing camera (for example, from a factory tow assist setup), your installation time reduces significantly. Our team performs a diagnostic health check before any work begins to confirm compatibility and give you an exact quote. Please contact us for earlier model years; we can often engineer a tailored solution using the same genuine parts.
Installation – A Factory‑Fit Finish
Our workshop team approaches every ClearSight installation with the same precision that Land Rover demands for its vehicles. The work starts with a full software backup and configuration validation using JLR Pathfinder. Our technicians route the new wiring along the factory harness, securing it with identical clips and textile tape. The mirror bracket uses the original windscreen mount, so the new mirror sits exactly where the old one did. For the roof pod, we replace the dummy shark‑fin with the camera‑enabled version, ensuring the paint finish matches your vehicle perfectly. All connectors plug directly into designated cavities on the Body Control Module and the Central Junction Box, just as they would in a production‑line build.
The final stage of calibration loads the enabling software and verifies the video feed quality, auto‑dimming function, and toggle switch operation. The entire process takes around 3 to 4 hours, and you drive away with the system fully operational.
Why Choose LR‑Retrofit for Your ClearSight Upgrade?
We differentiate our ClearSight retrofit by using exclusively genuine Land Rover parts and factory‑authorised software. This approach guarantees that the system performs exactly as it would if fitted at the Solihull plant, and it integrates flawlessly with existing features like the puddle lamps, central locking, and the Start‑Stop system. Other providers may use generic cameras or mirror assemblies that can interfere with the vehicle’s electronics; we never take that risk.
Our installation work carries a 12‑month warranty, and all hardware enjoys a 2‑year manufacturer’s warranty. You also gain access to our post‑installation support, including free software updates for the lifetime of your ownership.
Ordering and Delivery
Choose the option that suits you:
- Supply only: We ship the complete kit (mirror, camera, harness, software licence, and illustrated installation guide) to your address. This option works well for experienced automotive electricians who already have JLR diagnostic tools.
- Supply and installation: Book an appointment at our workshop. The price covers all labour, software programming, calibration, and a full test drive. We guarantee a flawless result.
Orders ship within one working day via secure, tracked courier. We supply the kit with a detailed packing list and a clear step‑by‑step installation manual.
See clearly no matter what fills the back of your Land Rover. Use the button below to order your ClearSight Interior Rear View Mirror retrofit, or call us on +44 (0)1234 567890 for more details.
Add to Basket – ClearSight Interior Rear View Mirror Retrofit
Frequently Asked Questions
Does the ClearSight mirror still dim automatically at night when I use the digital display?
Yes. The mirror assembly includes a forward‑facing ambient light sensor and a rear‑facing glare sensor. When the display is active, the system adjusts the screen brightness automatically based on outside light conditions. The auto‑dimming function remains operative in mirror mode.
Will the camera view fog up in wet weather?
The ClearSight camera features a thermostatically controlled heating element that activates whenever the ambient temperature drops below 5 °C. Combined with the hydrophobic lens coating, this keeps the view consistently clear. In heavy rain, some models also include a dedicated washer jet that cleans the camera lens in tandem with the rear window wash.
Can I turn off the system and use the mirror as a normal glass mirror?
Absolutely. The toggle switch returns the mirror to a conventional reflective surface instantly. You can choose whichever view you prefer for the conditions you are driving in; the system remembers your last setting after an ignition cycle.
Does this retrofit affect the operation of my reverse camera or 360° parking system?
No. The ClearSight system uses a completely independent video feed that neither interrupts nor degrades the function of your reverse camera or surround view. The two systems coexist without any conflict.
My vehicle does not have a shark‑fin pod. Can you still install ClearSight?
We can often fit the camera pod on vehicles that did not originally leave the factory with one. This requires a roof-mounting kit and a paint‑matched cover. Contact us with your VIN, and we will confirm feasibility and provide a tailored quotation.
