Powertrain Calibration and Torque Vectoring
The foundation of the Configurable Terrain Response upgrade lies in the reprogramming of the Powertrain Control Module and the transfer case control logic. By uploading the specialized configuration file via the `PCM_Terrain_Flash_v3` protocol, the system gains the ability to alter throttle mapping, transmission shift points, and torque converter lock-up characteristics. When navigating low-traction surfaces, the system continuously calculates the wheel slip ratio, defined as $\lambda = \frac{\omega r – v}{v}$, where $\omega$ is the angular velocity of the wheel, $r$ is the effective tire radius, and $v$ is the vehicle velocity. This real-time telemetry allows the Active Driveline to preemptively route torque to the axle with the highest available friction coefficient.
The Configurable Terrain Response Interface

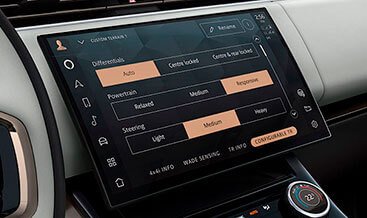

Unlike standard Land Rover terrain modes that apply fixed parameters, the Configurable mode introduces a bespoke driver interface via the central touchscreen. Through the `terrain_response_config.xml` overlay, the driver can independently adjust steering weight, throttle response gradient, traction control intervention thresholds, and electronic differential lock bias. This granular control ensures that the vehicle dynamics align perfectly with driver preference and specific terrain nuances, whether navigating deep rutted mud or high-speed gravel transit.
All-Terrain Progress Control Integration
As a critical component of the full terrain suite, this retrofit simultaneously enables All-Terrain Progress Control. ATPC functions as a low-speed, off-road cruise control. The system utilizes a complex proportional-integral-derivative control loop to manage individual wheel braking and powertrain output. The torque distribution algorithm operates continuously to maintain the set speed without driver throttle input, governed by the following control logic:
$$ T_{diff} = k_p e + k_i \int e \, dt + k_d \frac{de}{dt} $$
Where $e$ represents the error between the target vehicle speed and actual speed, ensuring imperceptible traction management over severe obstacles.
Hardware Integration and Software Commissioning Protocol
Commission Your Terrain Response Upgrade
Maximize the off-road potential of your Land Rover with an upgrade that matches the factory engineering standards. The Configurable Terrain Response retrofit package includes all necessary switchgear, wiring harnesses, and proprietary software calibration files. The complete system integration is priced at $1,250, which includes the coding of All-Terrain Progress Control and the full suite of Land Rover terrain modes. Select your specific chassis code below to verify module compatibility, add the retrofit to your build, and schedule your commissioning appointment with our certified Land Rover technicians.
