What the Retrofit Pack Includes

• Genuine Land Rover Interactive Driver Display (12.3” TFT) matched to your vehicle platform. This is the identical component that Land Rover installs on high‑spec models—not an aftermarket copy.
• Vehicle‑specific wiring adapter where required (some earlier models need a short interface lead to bridge the network protocol). We include this adapter when your VIN analysis confirms the need.
• Complete software enablement: a CCF (Car Configuration File) update that activates the Interactive Driver Display feature, reprogramming of the IPC (Instrument Pack Control) module with the correct visual data package, and integration with the Infotainment Master Controller.
• Precision odometer programming. We read your current mileage directly from the vehicle and write the exact figure into the new cluster—your service history and legal records remain absolutely correct.
• Functional calibration of all warning lamps, needle sweeps, and ADAS alert graphics to ensure every symbol displays exactly where you expect it.

How the System Works After Installation

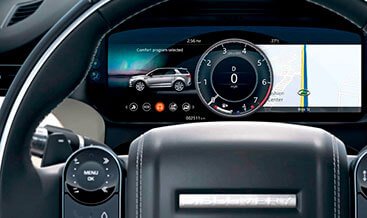

The Interactive Driver Display communicates with your InControl Touch Pro over the vehicle’s high‑speed MOST or ethernet network (depending on model year). As soon as you start the engine, the cluster lights up with the familiar Land Rover boot animation and presents your chosen display mode. Using the steering‑wheel buttons, you cycle through the available layouts. In full‑map mode, the entire screen becomes a navigation canvas fed directly from the centre touchscreen—you see road names, junction guidance and remaining time to destination without taking your eyes off the road. Media mode shows album art and track details. Phone mode lists recent calls and contacts. Off‑road mode, where supported, displays steering angle, wheel articulation and compass heading. All active‑safety warnings (blind‑spot monitor, lane keep assist, forward alert) show as full‑colour overlays, making them unmistakable. If you have a head‑up display, the cluster and HUD work in tandem, sharing the same data stream seamlessly.

Compatible Land Rover Vehicles

This retrofit suits Land Rover models already equipped with InControl Touch Pro or the later Pivi Pro infotainment system. We verify compatibility through your VIN before any work begins. Typical compatible vehicles include:

Vehicles with the earlier InControl Touch (non‑Pro) system may require a supplementary MOST interface. We check your VIN and let you know precisely what’s needed.

Our Installation Process

1. We carefully remove the original analogue instrument cluster without disturbing surrounding trim. The mounting stays 100% factory.
2. We install the new TFT cluster and connect it to the vehicle network using the existing plug (plus the dedicated adapter if your model requires it).
3. We update the vehicle’s software with JLR Pathfinder. A targeted CCF change activates the Interactive Driver Display, and we flash the IPC with the correct variant file, loading all visual assets and functional parameters.
4. We program the odometer to match your current mileage exactly, then calibrate the needle zero positions and test every warning light sequence.
5. We verify every function with you—navigation mirroring, media and phone display, driving mode changes, and ADAS alert pop‑ups. A short road test confirms the speed signal and all dynamic warning behaviours.

Why Choose LR‑Retrofit for This Upgrade

• 100% genuine Land Rover part – You receive the factory cluster, not an imitation. It fits and performs exactly like the unit installed at the Solihull plant.
• Preserves your warranty and resale value – The upgrade uses only manufacturer‑approved programming methods. Your local Land Rover dealer can still service, diagnose and update the vehicle without any conflict.
• Mobile installation convenience – We complete the entire retrofit (typically 1.5 hours) at your home or workplace, saving you dealership downtime.
• Flawless odometer integrity – We transfer the exact mileage, keeping your service records and legal status perfectly intact.

Important Notes

The Interactive Driver Display acts as a second screen for your existing infotainment; it mirrors navigation only if your vehicle has a factory navigation‑enabled InControl Touch Pro or Pivi Pro system. If you later add navigation, the cluster will immediately reflect the maps. All your original controls—steering‑wheel buttons, indicator stalk cluster controls and the centre touchscreen—continue to operate without any change. The cluster dims automatically with ambient light and the instrument brightness roller. It never affects any driver‑assistance features or the head‑up display; indeed, it enhances them with more detailed visual feedback.
