What Is Reverse Traffic Detection?

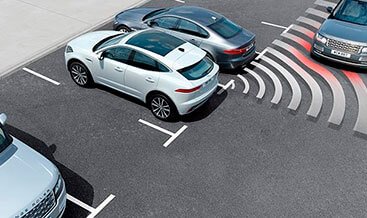

Reverse Traffic Detection, also known as Cross Traffic Alert, monitors the area behind and to the sides of your vehicle while you reverse. Rear corner radar sensors scan for approaching vehicles, cyclists, and pedestrians. When an object moves toward your path, the system delivers a visual and audible warning through the touchscreen, instrument cluster, and door mirrors.
Parking spaces in busy car parks and roadside bays create genuine blind spots. Your rear camera shows what sits directly behind, yet it cannot reveal a car approaching from the left or right. Reverse Traffic Detection fills that gap. The feature forms part of the wider Blind Spot System and shares the same rear radar hardware.
Many Jaguar and Land Rover vehicles leave the factory with the sensors installed but the function inactive. Our retrofit enables the complete system using genuine JLR components and VIN-specific programming.
What the Retrofit Covers
We install and program the components that drive Reverse Traffic Detection:
- Rear Corner Radar Sensors: Detect lateral movement behind the vehicle with high accuracy.
- Blind Spot Monitoring Control Module: Processes radar data and manages alert logic.
- Door Mirror Warning Indicators: Display visual alerts on the appropriate side.
- Parking Aid Module: Coordinates detection with existing parking sensors.
- Instrument Cluster and Infotainment Head Unit (IHU): Present on-screen warnings and chime alerts.
- Gateway Module (GWM): Maintains secure communication across the vehicle network.
- Body Control Module (BCM): Integrates alerts with lighting and audio functions.
Each retrofit uses VIN-specific configuration files from JLR’s official database. We never use generic or third-party components.
How the JLR Reverse Traffic Detection Works
When you select reverse gear, the Blind Spot Monitoring Control Module activates the rear corner radar sensors. The sensors emit continuous signals and measure reflections from moving objects. The module calculates each object’s trajectory, speed, and time to arrival. When an object approaches your intended path, the system triggers a warning.
The alerts escalate with risk. A distant object produces a mirror indicator. A close, fast-approaching object adds an audible chime and a message on the touchscreen. On vehicles equipped with emergency braking support, the system can apply the brakes to prevent a collision.
The system operates at reversing speeds and monitors zones extending several meters to each side of the vehicle. It distinguishes moving objects from parked cars and static structures, which keeps alerts relevant and minimizes false warnings.
Installation takes between two and four hours depending on your vehicle model. Our technician provides step-by-step guidance throughout the process. After installation, we program the modules, calibrate the sensors, and verify correct operation in a controlled reversing test.
Why Choose Our JLR Reverse Traffic Retrofit
We specialize in Jaguar and Land Rover vehicles. Our team uses genuine JLR components and approved diagnostic equipment. We provide clear instructions, live remote support, and a post-installation verification report. You receive the same quality as a franchised dealer without the high labor rates or scheduling delays.
Vehicle Compatibility
This retrofit supports a broad range of Jaguar and Land Rover vehicles, including:
- Land Rover: Defender (L663), Discovery (L462), Discovery Sport (L550), Range Rover (L405, L460), Range Rover Sport (L494, L461), Range Rover Velar (L560), Range Rover Evoque (L538, L551)
- Jaguar: F-Pace (X761), F-Type (X152), XE (X760), XF (X260), E-Pace (X540), I-Pace (X590)
Compatibility depends on your vehicle’s existing wiring and rear radar specification. Contact us with your VIN and we will confirm the correct kit for your build.
What the Retrofit Kit Includes
- Genuine JLR rear corner radar sensors
- Blind spot monitoring control module with OEM mounting hardware
- Door mirror warning indicators matched to your vehicle
- Vehicle-specific wiring harness with OEM connectors
- VIN-specific configuration and calibration files
- Step-by-step installation guide with torque specifications
- Remote technical support from our JLR-certified team
Key Benefits at a Glance
- Improves reversing safety — you detect traffic that cameras cannot show
- Reduces parking stress — you leave tight spaces with greater confidence
- Protects pedestrians and cyclists — the system warns before contact occurs
- Delivers accurate alerts — radar logic filters static objects
- Integrates with factory systems — warnings appear on your touchscreen and mirrors
- Supports braking intervention — equipped vehicles can stop automatically
- Uses genuine JLR components — you receive factory-grade reliability
Order Your Reverse Traffic Detection Retrofit Today
Add a proven safety feature to your Jaguar or Land Rover. Order now and receive your complete retrofit kit with genuine JLR components, VIN-specific programming, and expert support. Our team guides you through every step.
Contact our JLR retrofit specialists with your VIN, or proceed directly to checkout to secure your kit.
Note: Reverse Traffic Detection supports the driver but never replaces attentive reversing. Always check mirrors, camera views, and surroundings before moving. Installation requires basic hand tools and a compatible JLR diagnostic interface. We provide a full tool list upon order confirmation.
