What Is Wade Sensing?

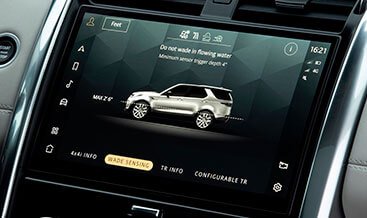

Land Rover developed Wade Sensing to support serious off-road driving. Ultrasonic sensors in both door mirrors measure the distance to the water surface. The system calculates the current wading depth and displays it on the central touchscreen. When the water reaches 750 mm, the system activates automatically and starts reporting depth in real time. As the water level rises, the display updates continuously. If you approach the vehicle’s maximum wading depth, a visual alert prompts you to stop safely. This active monitoring removes uncertainty and helps you protect the engine, electrical systems, and interior from water ingress.
How the Retrofit Works
Our Wade Sensing retrofit follows Land Rover’s original engineering path. We supply the correct mirror-mounted ultrasonic sensors, the control module, and the required door and body wiring. Our technicians integrate these components with your vehicle’s CAN bus and central touchscreen. We then enable the Wade Sensing function through Land Rover’s SDD or Pathfinder diagnostic platform, depending on your model. You get a factory-level feature that looks and operates exactly like a production-fit system.
Vehicle Compatibility
This retrofit suits a wide range of modern Land Rover models. Compatible platforms include Discovery 5, Range Rover L405, Range Rover Sport L494, and Defender L663. Specific fitment depends on your vehicle’s existing Terrain Response system, door mirror wiring, and touchscreen generation. Contact our team with your VIN, and we will confirm exact compatibility before you order.
Benefits of Wade Sensing
You receive real-time water depth readouts without leaving the driver’s seat. The system activates automatically once water reaches 750 mm. You gain a factory-fitted look and operation. You protect critical components from water damage. The retrofit uses genuine Land Rover parts and includes a 12-month warranty.
Technical Overview
Wade Sensing uses ultrasonic sensors that transmit and receive sound pulses. The system measures the time delay between the transmitted pulse and the reflected echo from the water surface. This data travels over the vehicle’s LIN or CAN network to the central processor. The touchscreen then displays the depth in millimetres. Maximum wading depths vary by model. For example, Discovery 5 and Range Rover L405 support up to 900 mm, while Defender 110 also reaches 900 mm with air suspension. The system’s accuracy remains consistent at low speed, which makes it ideal for careful river crossings and floodwater.
Installation and Activation
Our technicians complete the retrofit at our workshop. The process takes one full day for most vehicles. We route the wiring inside the door mirrors, install the sensors, and fit the control module in the correct location. We then connect the system to the vehicle network and load the correct calibration files. After installation, we test the system with a water bath to verify sensor response and display accuracy. You collect your vehicle with full functionality and a 12-month warranty on parts and labour.
Order Your Wade Sensing Retrofit
Order your Wade Sensing retrofit today. Contact LR-Retrofit with your vehicle registration or VIN. Our team confirms compatibility, provides a fixed price, and books your installation date. Upgrade your Land Rover with genuine Wade Sensing and wade with certainty.
