Cabin Air Purification Pro is JLR’s flagship interior air-quality system, and it goes far beyond a conventional pollen filter. The system combines a PM2.5 high-efficiency particulate filter, a Panasonic Nanoe X hydroxyl-radical generator, and an external Air Quality Sensor (AQS) that monitors incoming nitrogen dioxide, carbon monoxide, and traffic-related pollutants. Together, these components filter fine particulate matter down to 2.5 micrometres, neutralise airborne allergens, bacteria, and odours, and suppress mould growth on the evaporator core[reference:0].

Many DOIP-architecture JLR vehicles leave the factory with the climate hardware partially or fully provisioned, yet the Car Configuration File locks the Pro feature set behind a trim-level software restriction. The HVAAC climate-control module ignores the Nanoe X generator and the AQS sensor until a technician writes the correct CCF build flags. This retrofit delivers the full hardware package where the vehicle lacks it, and activates the complete Pro function set through certified Pathfinder DOIP programming. The touchscreen then exposes the native Purify mode, live Air Quality Index graphics, and CO₂ management logic exactly as a factory-optioned build does.

How the Three-Stage Purification Architecture Works

The system operates as a coordinated sequence rather than three independent add-ons. The AQS sensor mounts in the HVAC intake plenum and samples external air for NO₂, CO, and pollutant concentration. When pollutant levels cross JLR’s calibrated thresholds, the sensor commands the recirculation flap to close before contaminated outside air enters the cabin. Downstream, the PM2.5 high-density filter captures at least 95% of particles as small as 2.5 micrometres, including brake dust, tyre particulate, pollen, and industrial emissions[reference:1]. The Panasonic Nanoe X generator then releases hydroxyl radicals encapsulated in nano-sized water particles into the driver’s side air duct. These radicals denature surface proteins on viruses, bacteria, and allergens, deodorise the cabin, and inhibit mould growth on the evaporator core. The generator runs at 100 kHz and produces 4.8 trillion hydroxyl radicals per second, communicating over a private LIN-bus with the Automatic Temperature Control module[reference:2].

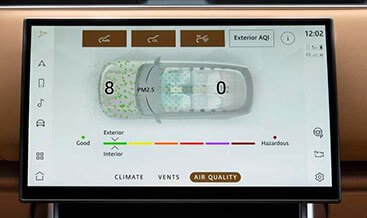

The ATC module governs ioniser run cycles, filter monitoring, and purification-mode logic. CO₂ management periodically reintroduces fresh external air when cabin carbon-dioxide concentration rises, which helps maintain driver alertness on long journeys[reference:3]. The Pivi Pro touchscreen displays a colour-coded Air Quality Index from 1 to 500, showing both interior PM2.5 levels and the external pollution level detected at the intake[reference:4].

Why CCF Coding Decides Whether the System Works

Hardware fitment alone cannot activate Cabin Air Purification Pro. The HVAAC climate-control module, the BCM body controller, and the GWM gateway module ignore the Nanoe X generator and the AQS sensor until the vehicle’s CCF carries the correct purification feature flags. Fit the components without those flags and the Purify soft key never appears in the Pivi Pro climate menu, the AQI graphics stay hidden, auto-recirculation fails to trigger, and the gateway logs HVAC-related configuration-mismatch DTCs[reference:5].

Generic aftermarket coding cannot reproduce JLR’s AQS pollutant-threshold mapping, Nanoe X generator power-cycle timings, or Pivi Pro AQI display logic. Poor-quality configuration produces intermittent HVAAC faults, non-triggering recirculation, and missing air-quality menus. Our technicians program the CCF through official JLR Pathfinder DOIP sessions, updating only validated HVAAC, BCM, and GWM parameters. We avoid permanent destructive HVAAC ECU-flash operations where possible. Every factory climate-control safety limit, blower-motor protection threshold, and diagnostic-logging routine stays fully intact[reference:6].

Technical Specifications

Supported Models and VIN Verification

This retrofit suits DOIP-architecture JLR vehicles equipped with a fourth-generation Automatic Temperature Control module and Touch Pro or Pivi Pro infotainment. Supported platforms include Range Rover L460 (2022 onwards), Range Rover Sport L461 (2022 onwards), Range Rover Velar L560 (2021 onwards with Touch Pro or Pivi Pro), Range Rover Evoque L551 (2021 onwards with automatic climate control), Discovery 5 L462 (2021 onwards), New Defender L663 (2020 onwards with Pivi Pro), and Discovery Sport L550 (2021 onwards with automatic climate control)[reference:7]. Premium Jaguar DOIP-chassis models with Pivi Pro also qualify.

We run a VIN check on every order. That check confirms ATC module firmware level, HVAC assembly variant, existing Nanoe X and AQS provisioning, and CCF compatibility. Vehicles with manual air conditioning cannot accept this retrofit. Some chassis carry partial pre-wiring for purification components; others require the full hardware kit. We identify the exact configuration before dispatch, so the installation session proceeds without missing parts or incompatible connectors[reference:8].

Installation and Remote Calibration

A qualified installer mounts the AQS sensor in the pollen filter housing or cowl intake and connects it to the ATC LIN network. The installer replaces the standard cabin filter with the PM2.5 high-density element, observing the directional airflow arrow. The Nanoe X generator fits into the driver’s footwell air duct on its factory bracket, with wiring routed behind the centre console to the LIN-bus junction. All components mount in designated positions already present in the HVAC assembly, so no cutting or permanent modification is required[reference:9].

After mechanical fit-out, our technician joins a remote Pathfinder DOIP session through a compatible VCI. We update the HVAAC module calibration to the latest file supporting purification routines, then write the CCF flags that enable Cabin Air Purification Pro and the Air Quality Display. The functional test verifies Nanoe X current consumption, AQS closed-loop response using a solvent-impregnated test swab at the intake, and the AQI display refresh rate on the touchscreen. We clear all residual climate-system DTCs and confirm that every existing multi-zone automatic-climate function retains full operational capability.

What the Cabin Gains

Occupants breathe measurably cleaner air from the first minute of every journey. The PM2.5 filter removes the fine particulate matter that conventional filters pass through. The Nanoe X generator actively neutralises allergens, bacteria, and odours on surfaces as well as in the air, which proves especially effective against the “wet sock” smell that develops when evaporator mould takes hold. The AQS sensor closes the recirculation flap before exhaust fumes from a lorry or a traffic jam reach the cabin, without the driver touching a control. On long drives, CO₂ management refreshes the cabin air before carbon-dioxide build-up dulls concentration. The Pivi Pro AQI graphic gives occupants a precise, data-driven view of the interior environment rather than a vague assurance that the air is “filtered.” Every factory climate function, safety limit, and diagnostic routine remains active, and the configuration reverses cleanly if the vehicle changes hands[reference:10].

Ordering and Activation Support

Select your model and model year at checkout and provide your VIN. Our team confirms ATC module firmware, HVAC assembly variant, and purification hardware eligibility before releasing the kit or booking the coding session. You receive the genuine PM2.5 filter element, Panasonic Nanoe X generator with integrated power supply, AQS sensor, vehicle-specific air duct adapter, LIN-bus harness with OEM connectors, and the remote Pathfinder calibration appointment. Our engineers support the session from pre-scan through post-calibration AQI verification.

Breathe the air quality your vehicle was engineered to deliver. Genuine JLR Cabin Air Purification Pro hardware. Pathfinder DOIP activation. Factory-level climate integration.
