Cabin Air Ionisation with PM2.5 Filter – JLR Air Quality Upgrade

Transform every journey into a breath of fresh air. This genuine JLR retrofit brings advanced air purification directly into your Land Rover’s climate control system. A high‑voltage ioniser releases charged particles that actively neutralise bacteria, viruses, mould spores, and unpleasant odours, while the upgraded PM2.5 certified particulate filter traps fine dust, soot, pollen, and other airborne pollutants before they ever reach the cabin. You enjoy a noticeably cleaner, healthier interior environment – without any alteration to your dashboard or ventilation performance.

Intelligent Air Purification, Fully Integrated

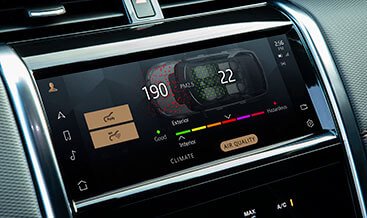

The system works silently alongside your existing Heating, Ventilation and Air Conditioning (HVAC) module. Once we programme the vehicle’s CCF (Car Configuration File), the ioniser and enhanced filtration appear as a factory‑fitted option on the infotainment screen. You monitor air quality in real time and activate the purification programme with a single touch. The Climate Control Unit automatically manages the filtration cycle to maintain healthy cabin conditions while preserving range and fuel efficiency.

• Bipolar ionisation floods the cabin air stream with positive and negative ions that cluster around airborne contaminants, rendering them inactive.
• PM2.5 high‑efficiency filter captures at least 95% of particles as small as 2.5 micrometres, including brake dust, pollen, and industrial pollution.
• Automatic recirculation closes the fresh‑air flap when the Air Quality Sensor detects elevated NO₂ or CO levels outside.
• Zero maintenance routine – the ioniser requires no replacement, and the PM2.5 filter element simply swaps at the standard cabin filter service interval.
• Healthier air for all occupants – reduces allergy triggers, respiratory irritants, and lingering odours from pets or wet outdoor gear.

Technical Specifications

Every component meets the same rigorous validation as the parts originally fitted to Range Rover. The ioniser produces safe, certified levels of ozone well below the 0.05 ppm limit, and the filter media carries ISO 16890 certification for particulate filtration efficiency.

Parameter	Specification
Ionisation Technology	Needle‑point bipolar ion generation, 0.5 kV to 1.2 kV operating voltage
Ion Output	≥ 2 × 10⁶ ions/cm³ at blower outlet (measured at medium fan speed)
PM2.5 Filter Type	Multi‑layer synthetic media with activated carbon adsorption layer; efficiency ≥ 95% per ISO 16890‑1 ePM2.5
Control Integration	Hard‑wired to the HVAC module via LIN‑bus or dedicated discreet output, enabled through CCF edit
Operating Parameters	Automatic mode based on AQS (Air Quality Sensor) input; manual override via touchscreen
Ozone Generation	< 0.04 ppm in continuous operation (CARB certified safe level)
Electrical Consumption	< 5 W during active ionisation, zero parasitic draw when vehicle is off
Component Lifespan	Ioniser rated for 8,000+ operating hours; PM2.5 filter replaced every 2 years / 30,000 km (service interval)

What the Retrofit Kit Contains

You receive a complete pre‑assembled installation package. Our wiring harness uses factory‑grade connectors that plug directly into the existing blower motor housing, leaving no trace of modification. Comprehensive, full‑colour guides walk you through the panel removal and software coding steps.

• Bipolar ioniser module with dedicated mounting bracket
• PM2.5 high‑efficiency cabin filter element (direct replacement for standard pollen filter)
• Wiring harness with waterproof connectors and integrated fuse protection
• HVAC module interface cable and securing clips
• Installation manual with torque specifications and wiring diagrams
• Remote CCF programming support to activate the “Cabin Air Ionisation” interface on your infotainment screen

Vehicle Compatibility

We verify your VIN before dispatch to guarantee a perfect match. The ioniser module fits any Land Rover with automatic climate control and a cabin pollen filter housing that accepts the upgraded PM2.5 element. The following models receive full platform‑specific integration:

• Range Rover L460 (2022–onwards)
• Range Rover L405 (2018–2022) – requires CCF update to enable on 10‑inch Pivi or InControl Touch Pro
• Range Rover Sport L494 (2018–2022)
• Discovery 5 L462 (2017–onwards)
• Range Rover Velar L560 (2018–onwards)
• New Defender L663 (2020–onwards)
• Range Rover Evoque L551 (2019–onwards)
• Discovery Sport L550 (2019–onwards)

Vehicles with manual climate control or early CD‑based infotainment may require a slightly different software path. Contact our team for a personalised compatibility check.

Why Choose the Genuine JLR Cabin Air Purification System?

You gain far more than an aftermarket gadget. You integrate a solution that your Land Rover already knows how to manage. The ioniser appears in the diagnostic tool alongside every other factory module, and the PM2.5 filter fits precisely into the air distribution housing with zero bypass air. The system cooperates with the vehicle’s air quality sensor and the automatic recirculation logic to deliver the cleanest possible air exactly when you need it.

At the touch of a button, you create a wellness sanctuary on wheels. On heavily polluted motorways, the PM2.5 filter captures over 95% of fine dust before it enters your lungs. When pollen counts soar, the ioniser knocks down airborne allergens that slip past ordinary filters. After a day with your dogs at the beach, the integrated activated carbon layer neutralises damp, salty odours within minutes. Every journey becomes a genuinely healthier experience – and your Land Rover retains its sealed‑cabin integrity and resale value.

Ready to upgrade your vehicle’s air quality? Submit your enquiry today and we will confirm compatibility, provide a bespoke quote, and schedule your installation within one working day.
