Genuine JLR Wireless Charging Retrofit – Qi‑Certified Fast Charging

Add factory‑grade, cable‑free charging to your Land Rover with a genuine Qi‑certified wireless pad that integrates invisibly into the centre console. The system delivers up to 15 watts of power, matching the speed of a wired charger, while your phone sits securely in the original cubby. The vehicle’s touchscreen displays the charging status, and a single chime confirms the connection. You never again fumble with cables or clutter the cabin with aftermarket mounts. The retrofit uses genuine JLR components, a pre‑terminated harness, and a remote CCF (Car Configuration File) coding session to enable the wireless charging function — just as if it left the factory with the option.

How the Genuine Wireless Charger Works

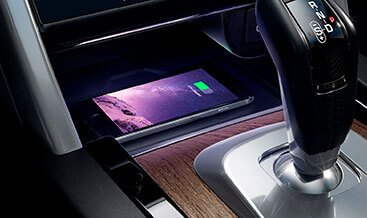

When you place a Qi‑compatible smartphone on the pad, the integrated transmitter coil detects the receiver and initiates a secure charging session. The module then communicates over the LIN‑bus with the Body Control Module (BCM), sending real‑time data to the Pivi Pro or InControl Touch Pro display. A charging icon appears on the screen, and the system mutes the start‑up chime after the first connection so you can drive without distraction. The pad automatically adjusts the power output between 5 W, 10 W and 15 W depending on the device’s capability, while a thermal sensor continuously monitors the coil temperature. If the phone becomes too warm, the module reduces the charge rate to keep the battery inside its optimal temperature window. Foreign object detection protects against heating of keys, coins or metal cases left on the tray.

• Qi‑certified 15 W fast charging – charges an iPhone or Samsung Galaxy at maximum wireless speed.
• LIN‑bus integration – the pad communicates with the vehicle’s network, enabling screen status and audio alerts.
• Thermal management – the module monitors coil temperature and automatically adjusts power to prevent overheating.
• Foreign object detection – the system stops charging if it detects a non‑compatible metallic object, keeping your cabin safe.

Technical Data

Retrofit Kit Contents

We supply every part you need for a clean, plug‑and‑play installation. The genuine JLR charging pad replaces the standard rubber tray, and the pre‑assembled harness connects to the existing vehicle wiring without cutting a single factory wire. A remote CCF coding session activates the wireless charging module, enables the touchscreen status icon, and configures the chime preferences. The colour‑printed guide details each step, from removing the centre console trim to securing the bracket and routing the harness.

• Genuine JLR wireless charging pad (model‑specific, with multi‑coil module)
• OEM‑style mounting bracket and retaining clips
• Pre‑terminated power and LIN‑bus harness with factory connectors
• Fuse tap and mini‑blade fuse (7.5 A)
• Installation booklet with 30 high‑resolution photographs
• Remote CCF coding session – we activate the charging function, status icon, and chime

Compatible Vehicles

We verify every VIN to ensure your vehicle has the correct centre console architecture and wiring preparation. The retrofitted charging pad fits into the forward cubby tray of the following models, provided they were built from the factory with the correct storage compartment and LIN‑bus availability.

• Range Rover L405 (2018‑2022) – with the open cubby forward of the cup holders
• Range Rover L460 (2022‑) – full centre console integration
• Range Rover Sport L494 (2018‑2022) – cubby tray ahead of the gear selector
• Range Rover Velar L560 (2018‑) – forward tray under the climate panel
• Discovery 5 L462 (2017‑) – upper cubby on the centre stack
• Defender L663 (2020‑) – open tray ahead of the gear lever
• Range Rover Evoque L551 (2019‑) – forward stowage bin
• Discovery Sport L550 (2019‑) – centre console tray

Real‑World Benefits of Wireless Charging

You climb into the cabin, place your phone on the pad, and the system instantly recognises the device. The touchscreen confirms the connection while you keep your eyes on the road. You no longer tangle with charging cables, and the cabin stays clean and uncluttered. On long journeys, the pad maintains the phone’s charge while streaming music and navigating, so you arrive with a full battery. The 15 W output tops up the latest smartphones as quickly as a wired connection, and the thermal management ensures the device never overheats, even during extended use. The OEM integration means you never need to remove a case under 5 mm thick, and the pad holds the phone securely during cornering and off‑road manoeuvres.

Order with confidence. Send your VIN to our team. We confirm compatibility, prepare a transparent quotation, and arrange delivery or professional installation within 48 hours.
