JLR Lane Departure Warning Retrofit — LDW System for Land Rover and Jaguar

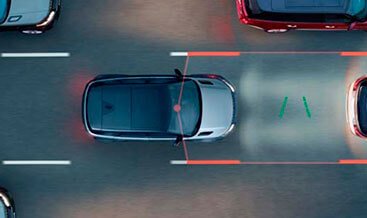

We supply and configure a complete Lane Departure Warning retrofit for your Jaguar Land Rover vehicle. The system uses a forward-facing camera to monitor the road ahead and detects when your vehicle drifts across a lane marking without an active indicator. It warns you through a visual alert in the instrument cluster and a gentle vibration through the steering wheel. Every kit matches your model year and infotainment build, and we configure the system to your VIN before you drive away.

Why Add Lane Departure Warning

Long motorway journeys and heavy urban traffic both test your concentration. Fatigue builds gradually, and a momentary lapse in attention can move your vehicle across a lane marking before you notice. Lane Departure Warning provides a continuous safety net that watches the road ahead and alerts you the moment your vehicle begins to drift.

When you install the system, you gain:

• Continuous lane marking detection through a forward-facing camera.
• A visual alert in the instrument cluster that identifies the side of the drift.
• A haptic warning through the steering wheel, which you feel immediately without looking away from the road.
• Full integration with your existing driver assistance menu and cluster display.
• Support for Traffic Sign Recognition on vehicles that carry the correct hardware.
• No aftermarket displays and no visible wiring, which preserves your factory interior finish.

The system works alongside Adaptive Cruise Control and other driver assistance functions on compatible platforms. Owners value the feature on motorway journeys, during long drives and in low-light conditions where lane markings remain visible to the camera but less clear to the eye. The retrofit also strengthens your vehicle’s specification for future resale, because buyers increasingly expect modern safety technology.

Compatibility and Vehicle Coverage

We support a wide range of JLR vehicles across the major model lines, including:

• Land Rover Defender (L663), Discovery (L462), Discovery Sport (L550), Range Rover Evoque (L551), Range Rover Velar (L560), Range Rover and Range Rover Sport.
• Jaguar F-Pace (X761), XF (X260), XE (X760), I-Pace (X590), E-Pace (X540) and F-Type.

We check your VIN against the JLR parts catalogue and confirm whether your vehicle carries the required wiring provisions and the correct instrument cluster. Some earlier model years need a cluster upgrade to display the LDW menu correctly. The IPMA (Image Processing Module A) must carry the correct software level to support the feature, and we verify that during the VIN check. Where your build lacks the necessary provisions, we supply a vehicle-specific harness that connects the camera to the existing network.

How the Process Works

We keep the retrofit organised and predictable:

• VIN verification: You send your 17-character VIN. We identify your model, build year, windscreen specification, instrument cluster type and IPMA software level.
• Kit preparation: We assemble the correct forward camera module, windscreen mounting bracket, wiring harness and fixings for your vehicle.
• Installation: You fit the camera behind the rear-view mirror, connect the harness and mount the bracket to the windscreen.
• Configuration: We edit the Car Configuration File parameters for your VIN and enable the LDW menu through the JLR diagnostic platform. The key parameters include EUCD-098 for Lane Departure Warning and the corresponding As-Built values.
• Calibration and test: You complete a static calibration with the supplied target, then confirm correct operation with a short road test above 37 mph.

Our technical team stays available throughout the process, and we answer questions at any stage.

JLR Technical Specification

The system uses a forward-facing camera module mounted on the windscreen behind the interior rear-view mirror. The camera captures the road ahead and sends image data to the IPMA (Image Processing Module A), which processes lane markings and road geometry in real time. The IPMA compares the vehicle’s position against the detected lane boundaries using data from the vehicle speed signal and steering angle sensor.

When the system detects an unintentional drift, it triggers a visual alert in the instrument cluster and a haptic vibration through the steering wheel. The Car Configuration File controls the feature activation through the EUCD-098 parameter, and we set the value to “LDW Fitted with Enable Menu & TSR Fitted with Overspeed” where your vehicle supports Traffic Sign Recognition. The MultiCAN-498 parameter manages the relationship between Lane Departure Warning and Lane Keep Assist, so the system reports the correct feature status to the cluster. Our configuration follows the factory Car Configuration File structure and writes back against your As-Built record, which keeps every setting consistent with the production build.

Where your vehicle carries the correct IPMA software, the same retrofit also enables Lane Keep Assist, which applies a gentle steering input to guide your vehicle back toward the centre of the lane. We confirm that capability during the VIN check and activate it where your hardware supports it.

Legal and Safety Notice

Lane Departure Warning assists the driver and does not replace driver attention. The system operates as a driving aid only. Please keep your hands on the steering wheel, watch the road ahead and follow the traffic laws in your country at all times.

What You Receive

• A genuine JLR forward-facing camera module, matched to your vehicle.
• A windscreen mounting bracket with a calibration target.
• A vehicle-specific wiring harness where your build requires one.
• Car Configuration File setup and LDW menu activation for your VIN.
• A printed installation manual with colour wiring diagrams.
• Remote CCF coding support and static calibration guidance.
• Access to our technical support team for installation guidance.

Order Your Lane Departure Warning Retrofit

Add the product to your cart and provide your VIN at checkout. We verify your vehicle, prepare the correct kit and send it with clear, model-specific instructions. Contact us first if you would like compatibility confirmed before you order. Drive with a system that watches the road ahead, and give yourself the confidence that modern driver assistance brings.
